Myers Convertable Jet Pump

Model Number:

HJ50S
Product Name:

Myers Convertable Jet Pump
Manufacturer:

Myers Pumps
Series (20 Models):

Quick Prime Sprinkler Pump 55-104gpm QP

1/2HP

Model Number

HJ50S

Specifications

$1,554.00

Email to a Friend Price Match

Skip to the end of the images gallery

Skip to the beginning of the images gallery

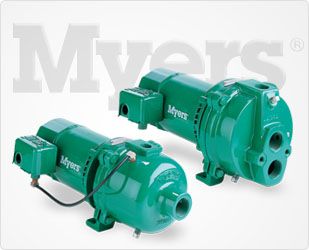

Myers HJ50S

Myers HJ Series is one of the most popular pump series in the market today. The HJ Series is known for its superior performance and dependability in home, farm, business and industrial applications around the world..

Rugged Cast Iron Case and Motor Bracket
NEMA Motor
Continuous Duty
Not for use with corrosive chemicals or flammable liquids
Manufactured to precise performance specifications
Proper impeller alignment for smooth, quiet running
High quality proven pressure switch with adjustable on/off pressure settings. 20 PSI differencial
Common brackets, cases and gaskets on all sizes ...simplified parts selection
Mechanical shaft seal with ceramic face and stainless steel construction for long seal life

More Information
Model Number	HJ50S
Series	Quick Prime Sprinkler Pump 55-104gpm QP
Max Flow (GPM.)	17
Max Flow GPH	1020
TDH Maximum (Ft)	150
Horse Power (HP)	1/2
Horsepower (IE .5, 1, 1.5, 20)	0.5000
Inlet Connection Type	FNPT
Inlet (In.)	1.25
Outlet Connection Type	FNPT
Outlet (In.)	1.25
Wetted Materials	PolyPro
Elastomers / O-ring	Buna-Nitrile
Voltage (V)	115/230
Voltage (Range)	110-120/220-240
Phase (Ø)	Single (1)
Motor Frequency	60
Motor	ODP
Speed (RPM.)	3450
Motor Frame	56J thrd
Self Priming	Yes
Suction Lift (FT.)	25
Max Operating Temperature (F)	110
Viscosity	Water 1.00 cp 31.00 ssu
Shaft	416SS
Mechanical Seal	No
Mechanical Seal Face	Carbon-ceramic
Mechanical Seal Type	Single
Coupling	N
Drain	Yes
Port Rotation	Yes
Weight (Lbs)	44.000000
