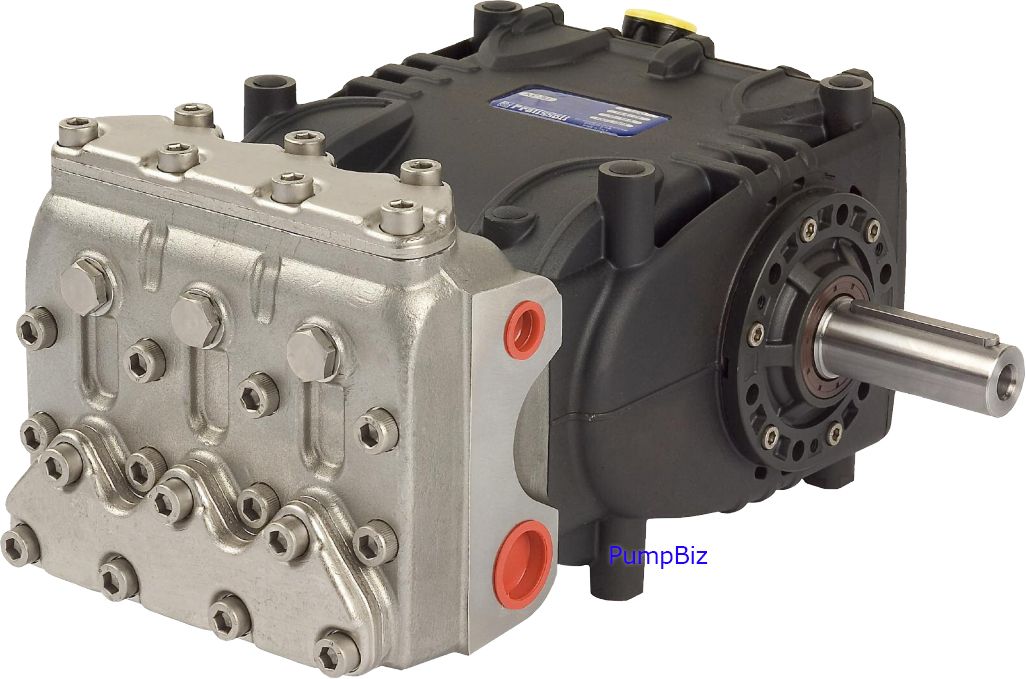

KE 3plex Plunger 24.0hp
-
Model Number:
KE28HA
-
Product Name:KE 3plex Plunger 24.0hp
-
Manufacturer:
-
Series (6 Models):
Model Number
KE28HA
$7,500.85
General KE28HA
EKN Series, Triplex Plunger Pump with 316SS Manifold and Wetted
Parts; 431 SS Valve Plate and Seat**Max. Inlet Pressure: 45
PSI**Max. Fluid Temperature: 140FPump Dimensions: 18.2" x 17.5" x
7.3"
| Model Number | KE28HA |
|---|---|
| Series | SS Heavy-Duty Industrial EKN Triplex Plunger 7.9-18.5 gpm 1850-4350 psi |
| Max Flow (GPM.) | 16 |
| Max Flow GPH | 960 |
| Horse Power (HP) | 25 |
| Horsepower (IE .5, 1, 1.5, 20) | 25 |
| Inlet Connection Type | FNPT |
| inlet size | 1in |
| Inlet (In.) | 1 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 0.75 |
| Wetted Materials | 316SS |
| Self Priming | Yes |
| Max Operating Temperature (F) | 140 |
| Mechanical Seal | No |
| Mechanical Seal Type | Double |
| Drain | Yes |
| Port Rotation | Yes |
| Weight (Lbs) | 120.000000 |
| Warranty (YRS.) | 5 |
>
