Industrial Diaphragm pump Diesel Skid
-
Model Number:
DD-4HAS
-
Product Name:Industrial Diaphragm pump Diesel Skid
-
Manufacturer:
-
Series (5 Models):
Diesel Skid mounted
Model Number
DD-4HAS
$23,992.00
Myers-Seth DD-4HAS
Myers Seth Pumps we manufacture pumps that can handle more gallons
per minute and a larger solid than any other 6 inch pump
manufacturer on the market today. Our "Bread and Butter" are our
High Volume pump line and our Double Diaphragm pumps, which nobody
in the market can touch. Our line consists of Hydrostatic Test
Pumps, Double Diaphragm Pumps, 4 - 16 inch centrifugal Trash Pumps,
and Hydraulic Submersibles. Take a look at a few of our pumps
features: No priming necessary - continuous unattended operation
Priming vertical suction lift of 30 feet in less than one minute
Handles large volumes of water easily (6" pump handles 2,300 GPM)
Total Oil-less vacuum priming systems Runs "Dry" with no damage
"indefinitely" Large solids handling up to 6.0 inches Handles
slurries and gaseous sludge Primes on long suction lines - 400/500
feet or more Powder coated frame and components Built-in large
capacity long running fuel tank Centrifugal Pump sizes 4 inch thru
16 inch Hydrostatic Test Pumps Hydraulic power units & heads,

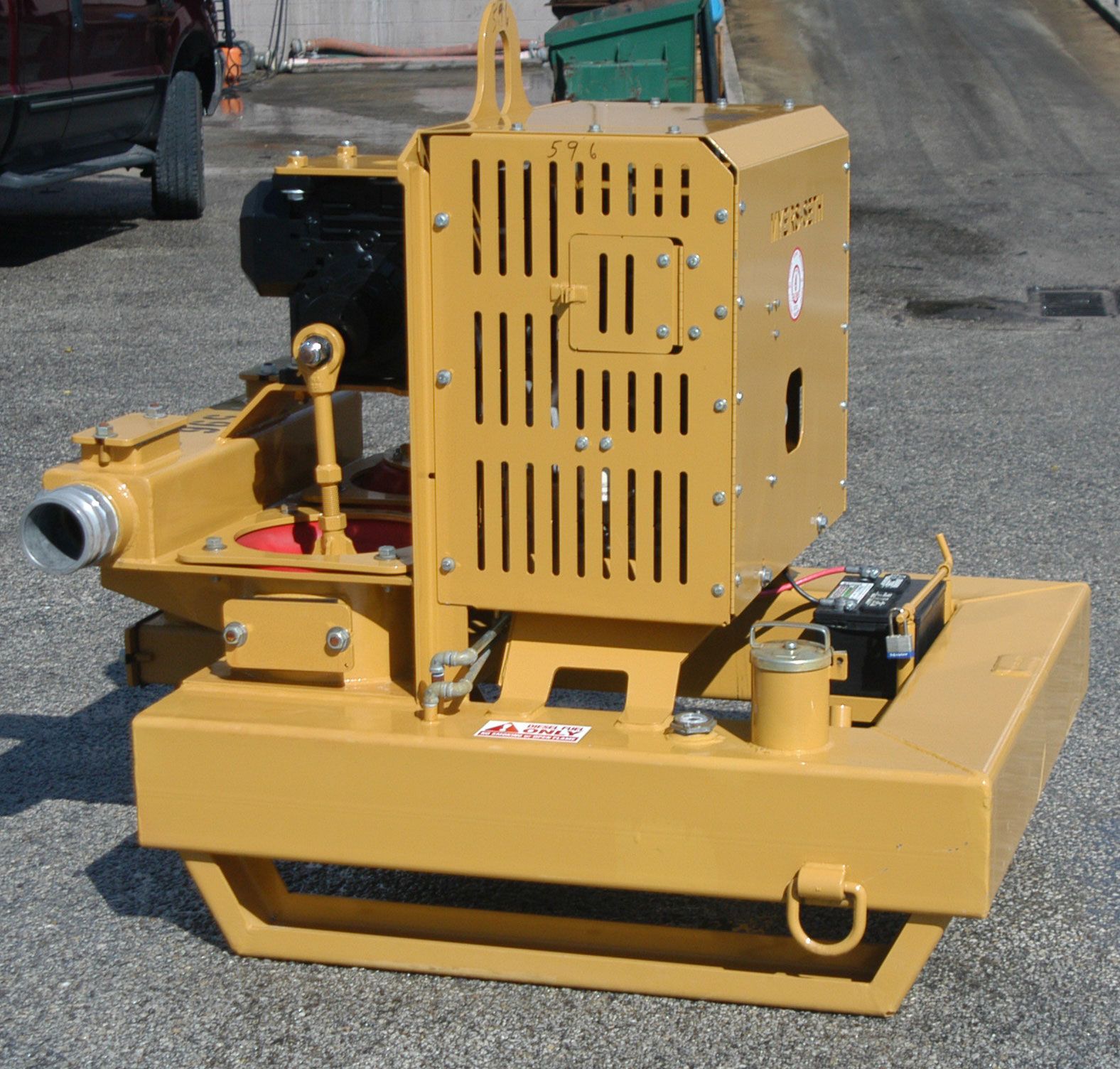

size 6 inch thru 10 inch This pump is SKID mounted version. Also
shown in the picture is the vandalism package, to keep the engine
from being stollen, which is not included. Order as a
option.DD-4/HA/S
| Model Number | DD-4HAS |
|---|---|
| Series | Diaphragm pump |
| Max Flow (GPM.) | 300 |
| Max Flow GPH | 18000 |
| Horse Power (HP) | 6 |
| Horsepower (IE .5, 1, 1.5, 20) | 5.7000 |
| inlet size | 4" |
| Inlet (In.) | 4 |
| Outlet (In.) | 4 |
| Wetted Materials | Cast Iron |
| Elastomers / O-ring | Buna-Nitrile |
| Motor | Diesel Engine |
| Self Priming | Yes |
| Suction Lift (FT.) | 28 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Mechanical Seal | No |
| Other | Height: 60? X Width ? 45? x Length ? 69? |
| Low Oil Shutdown | Yes |
| Drain | Yes |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 1500.000000 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 20 Feet Of Head | 255 |
| GPM Of Water At 40 Feet Of Head | 200 |
| GPM Of Water At 50 Feet Of Head | 145 |
| GPM Of Water At 60 Feet Of Head | 50 |
