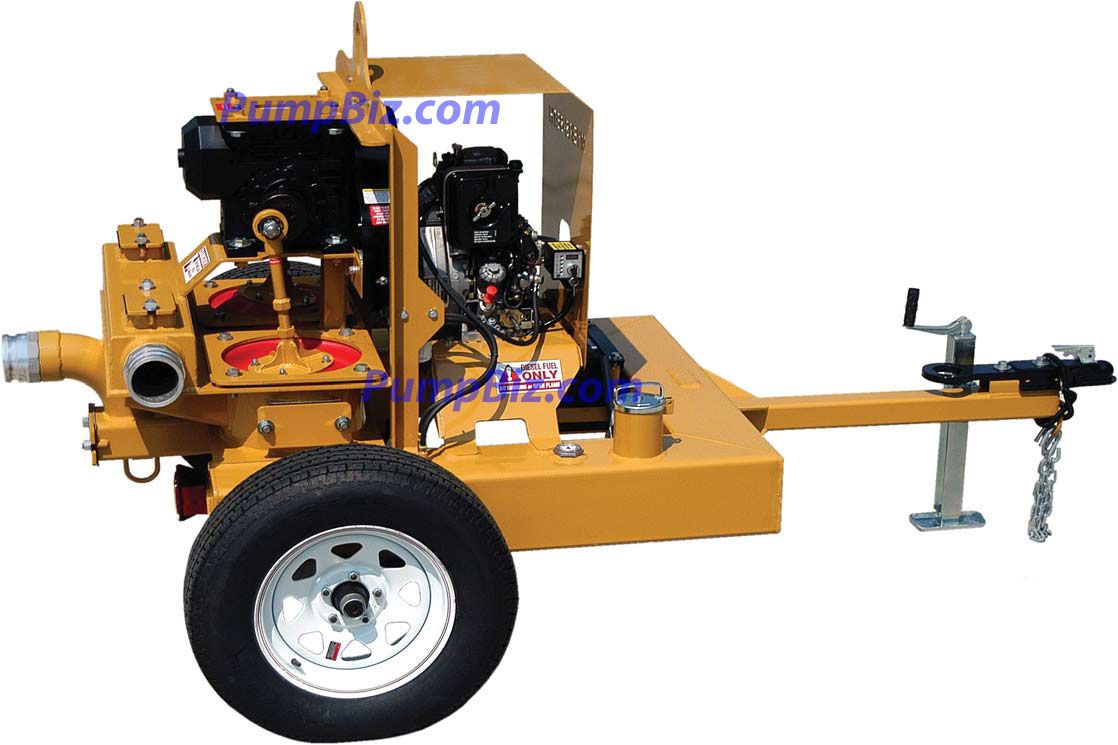

Industrial Diaphragm pump 4" Diesel
-
Model Number:
DD-4HAT
-
Product Name:Industrial Diaphragm pump 4" Diesel
-
Manufacturer:
-
Series (5 Models):
Diesel Trailer Mount
Model Number
DD-4HAT
$23,992.00
Myers-Seth DD-4HAT
Myers Seth Pumps we manufacture pumps that can handle more gallons
per minute and a larger solid than any other 6 inch pump
manufacturer on the market today. Our "Bread and Butter" are our
High Volume pump line and our Double Diaphragm pumps, which nobody
in the market can touch. Hatz 1D diesel engine, built in 35 gal
diesel fuel tank.
The Double Diaphragm (DD) series pump is one of our companyç—´ signature pumps and is the first pump we began manufacturing. The Double Diaphragm has become a staple with site and utility contractors across the United States. The DD series pumps are unique because of the continuous run ability, very low fuel consumption, wide variety of dewatering applications and the ability to handle large solids with ease. The DD Series pumps have become a benchmark for diaphragm pumps. The DD series pumps are excellent for: Open pit dewatering, Kelly wells, pumping out manholes, cleaning cesspools and septic tanks, small sock-drain, and small well-point systems. Take a look at a few of our pumps features: No priming necessary - continuous unattended operation Priming vertical suction lift of 28 feet in less than one minute Total Oil-less vacuum priming systems Runs "Dry" with no damage "indefinitely" Large solids handling up to 3.0 inches Handles slurries and gaseous sludge Primes on long suction lines - 400/500 feet or more Powder coated frame and components Built-in large capacity long running fuel tank These pumps are trailer and all of them are diesel powered DD-4/Ha/T
| Model Number | DD-4HAT |
|---|---|
| Series | Diaphragm pump |
| Max Flow (GPM.) | 300 |
| Max Flow GPH | 18000 |
| Horse Power (HP) | 6 |
| Horsepower (IE .5, 1, 1.5, 20) | 5.7000 |
| inlet size | 4" |
| Inlet (In.) | 4 |
| Outlet (In.) | 4 |
| Wetted Materials | Cast Iron |
| Elastomers / O-ring | Buna-Nitrile |
| Motor | Diesel Engine |
| Self Priming | Yes |
| Suction Lift (FT.) | 28 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Mechanical Seal | No |
| Low Oil Shutdown | Yes |
| Drain | Yes |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 1200.000000 |
| GPM Of Water At 20 Feet Of Head | 255 |
| GPM Of Water At 40 Feet Of Head | 200 |
| GPM Of Water At 50 Feet Of Head | 145 |
| GPM Of Water At 60 Feet Of Head | 50 |
