High Temperature Sump Pump 4/10HP
-
Model Number:
S40HT-11P
-
Product Name:High Temperature Sump Pump 4/10HP
-
Manufacturer:
-
Series (2 Models):
4/10HP115v Automatic
Model Number
S40HT-11P
$1,487.00

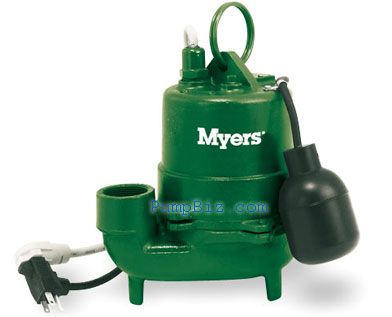

Myers S40HT-11P
Designed for hot water applications up to 194°F. All
cast iron construction with stainless steel fasteners. Pumping
applications include boiler blowdown pits, condensate pits and hot
water transfer. Maintenance-free Operation. For higher head (psi)
and flow application see S50HT.
- Boiler blow down, condensate pits, and hot water transfer.
- Oil-filled motor for bearing lubrication and maximum heat dissipation.
- Overload protected, shaded pole motor with no starting switch or relay.
- Heavy cast iron motor housing for cooler motor which extends life.
- Automatic piggy-back switch, but can be operated manually by plugging directly into outlet.
- Cast iron vortex impeller and volute passes 3/4” solids.
| Model Number | S40HT-11P |
|---|---|
| Series | S40HT Hi Temperature Pump 50gpm |
| Max Flow (GPM.) | 45 |
| Max Flow GPH | 2700 |
| TDH Maximum (Ft) | 21 |
| TDH Maximum (PSI) | 10 |
| Horse Power (HP) | 4/10 |
| Horsepower (IE .5, 1, 1.5, 20) | 0.4000 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 1.5 |
| Wetted Materials | Cast Iron |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor | Hermetically Sealed |
| Speed (RPM.) | 1725 |
| Self Priming | Yes |
| Max Operating Temperature (F) | 195 |
| Viscosity | Milk 3.20 cp 40.00 ssu |
| Mechanical Seal | No |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Motor Bearings | Ball |
| Impeller Material | cast iron pump with a non-clog vortex impeller and solids handling |
| Cord Length (Ft.) | 20 |
| Drain | Yes |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 42.000000 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 10 Feet Of Head | 43 |
| GPM Of Water At 15 Feet Of Head | 25 |
