High Pressure Centrifugal Pump

Model Number:

CT07
Product Name:

High Pressure Centrifugal Pump
Manufacturer:

Myers Pumps
Series (24 Models):

CT High Pressure Centrifugal Pumps

3/4HP 115/230v

Model Number

CT07

Specifications

$1,724.00

Email to a Friend Price Match

Skip to the end of the images gallery

Skip to the beginning of the images gallery

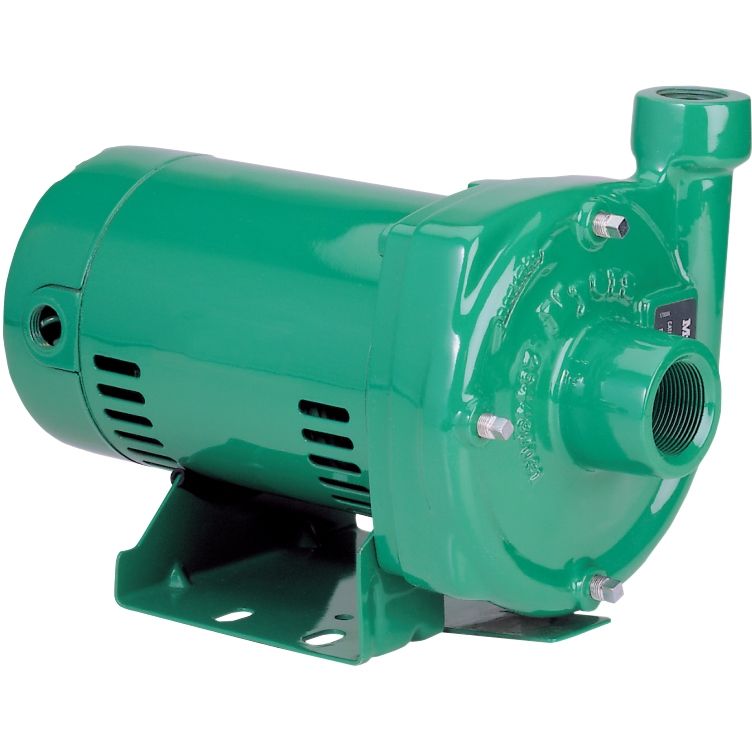

Myers CT07

Myers CT Series of centrifugal pumps are designed to meet your toughest pumping requirements. 26460D100 Rugged cast iron construction can be coupled with either a corrosion resistant composite, or a lead-free brass impeller. Versatile design features allow Crusader pumps to be installed with either a vertical or horizontal discharge. The CT Series is ideal for circulating, cooling towers, liquid transfer, sprinkling systems, general industrial service, irrigation, air conditioning, cooling tower and booster applications.

Double-Ball Bearing Motor
Continuous Duty Rated
Composite Impeller Rated to 140°F (Brass impeller models end with 'B')
Maximum Working Pressure of 125 PSI
The compact, back pullout design provides easy installation and serviceability.

More Information
Model Number	CT07
Series	CT High Pressure Centrifugal Pumps
Max Flow (GPM.)	48
Max Flow GPH	2880
TDH Maximum (Ft)	95
TDH Maximum (PSI)	41
Horse Power (HP)	3/4
Horsepower (IE .5, 1, 1.5, 20)	0.7500
Inlet Connection Type	FNPT
inlet size	1 ¼"
Inlet (In.)	1.25
Outlet Connection Type	FNPT
Outlet (In.)	1
Wetted Materials	CI-Plastic
Elastomers / O-ring	Buna-Nitrile
Voltage (V)	115/230
Voltage (Range)	110-120/220-240
Phase (Ø)	Single (1)
Motor Frequency	60
Motor	ODP
Speed (RPM.)	3450
Motor Frame	56C
Self Priming	No
Max Operating Temperature (F)	140
Shaft	304SS
Mechanical Seal Face	Carbon-ceramic
Mechanical Seal Type	Single
Impeller Size (IN.)	5.000000
Impeller Material	Plastic, closed
Cord Length (Ft.)	0
Duty	Continuous
Drain	Yes
Port Rotation	Yes
Weight (Lbs)	32.000000
