High Pressure Bronze Centrifugal Pump
-
Model Number:
490A-97
-
Product Name:High Pressure Bronze Centrifugal Pump
-
Manufacturer:
-
Series (52 Models):
230v 3HP TEFC
Model Number
490A-97
20% Off
Special Price
$1,459.62
Regular Price
$1,824.53

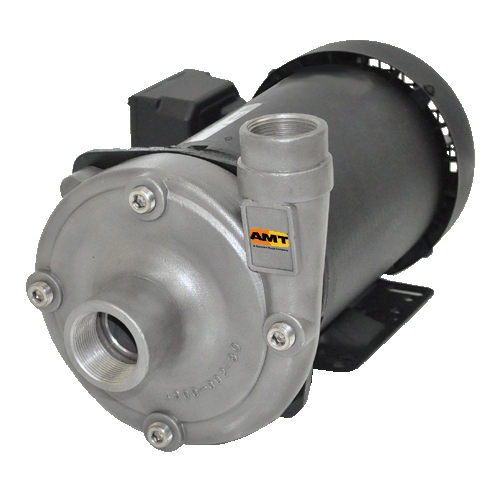

AMT 490A-97
High Head BronzeCentrifugal Pumps. Designed for continuous duty,
high pressure, high flow, general service water circulation and
transfer (boosting water in high rise apartments, hotels &
office buildings, circulation of hot & chilled water, pressure
boosting for cooling towers). Series 48 inlet & outlet are
1.25" & 1" while series 49 is 1.50" & 1.25
respectively.
See Curve "E"
Include Silicon Carbide / FKM N Type 31 Seal Factory installed: 489X-300-VS
Series: Centrifugal High Pressure Pumps
| Model Number | 490A-97 |
|---|---|
| part number | 490A-999-97 |
| Series | Centrifugal High Pressure Pumps 34-64 psi |
| Max Flow (GPM.) | 108 |
| Max Flow GPH | 6480 |
| TDH Maximum (Ft) | 130 |
| TDH Maximum (PSI) | 56 |
| Horse Power (HP) | 3 |
| Horsepower (IE .5, 1, 1.5, 20) | 3.0000 |
| Inlet Connection Type | FNPT |
| inlet size | 1 ½" |
| Inlet (In.) | 1.5 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 1.25 |
| Wetted Materials | 316SS, Bronze |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 230 |
| Voltage (Range) | 220-240 |
| Motor | TEFC |
| Self Priming | ---- |
| Suction Lift (FT.) | 5 |
| Max Operating Temperature (F) | 120 |
| Max Particle Size (In) | .125 |
| Viscosity | Glycerine 880.00 cp 5000.00 ssu |
| Shaft | 416SS |
| Length (In.) | 17.100000 |
| Mechanical Seal Face | Carbon-ceramic |
| Motor Bearings | Ball |
| Impeller Size (IN.) | a |
| Impeller Number (In.) | 1 |
| Other | amt pump |
| Rotation | cw |
| Impeller Material | Stainless Steel, Closed |
| Cord Length (Ft.) | 0 |
| Duty | Continuous |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 50.000000 |
| UPC | 072684650804 |
| GPM Of Water At 40 Feet Of Head | 92 |
| GPM Of Water At 100 Feet Of Head | 43 |
