High Flow Submersible Effluent Pump
-
Model Number:
ME3F-21
-
Product Name:High Flow Submersible Effluent Pump
-
Manufacturer:
-
Series (7 Models):
Model Number
ME3F-21
$691.00
Myers ME3F-21

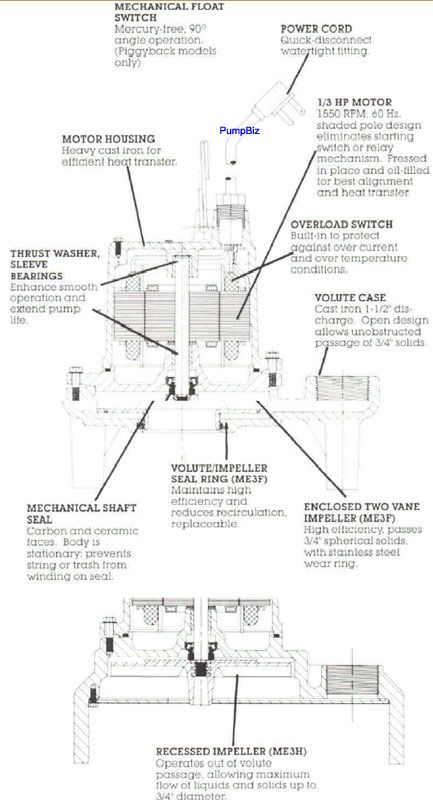

High Head (ME3H) and High Flow (ME3F) Submersible Effluent Pumps. Durable motor delivers years of reliable service. Engineered for maintenance-free operation.
- Oil-filled 1550 RPM motor for maximum heat dissipation and continuous bearing lubrication.
- Manual operation: This pump can be plugged directly into grounded receptacles .
- Overload protected, shaded pole motor eliminates starting switches and relays which are prone to fail.
- Heavy cast iron motor housing and volute case dissipate heat, allow motor to run cooler for extended life.
- Passes full 3/4” solids
- Enclosed 2 vane impeller
- UL, CSA and SSPMA listed.
- Handles domestic effluent and drain water, not raw sewage.
- See the Miscellaneous Page for information (click here)
- Min. Sump Dia.:
- Simplex: 24 in.
- Duplex: 36 in.
| Model Number | ME3F-21 |
|---|---|
| Series | ME3 Hi-flo/head Submersible Effluent Pump |
| Max Flow (GPM.) | 66 |
| Max Flow GPH | 3960 |
| TDH Maximum (Ft) | 31 |
| TDH Maximum (PSI) | 13 |
| Horse Power (HP) | 1/3 |
| Horsepower (IE .5, 1, 1.5, 20) | 0.3300 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 1.5 |
| Wetted Materials | CI-Plastic |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 230 |
| Voltage (Range) | 220-240 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor | Hermetically Sealed |
| Self Priming | Yes |
| Max Operating Temperature (F) | 140 |
| Viscosity | Milk 3.20 cp 40.00 ssu |
| Mechanical Seal | No |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Double |
| Drain | Yes |
| Port Rotation | Yes |
| Weight (Lbs) | 37.000000 |
| Warranty (YRS.) | 1 |
