GoatThroat Drum Pump w/ Santo
-
Manufacturer:
-
Series (4 Models):
-
Product Name:GoatThroat Drum Pump w/ Santo
-
Model Number:GT 200S
Blue

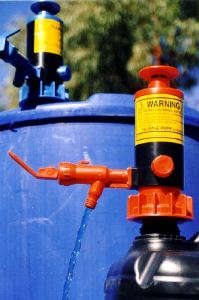

Goat Throat GT 200S
GoatThroat barrel drum pumps are a revolutionary new design for
simple and safe chemical transfer from a drum, barrel, pail etc.
Santoprean seal, Blue pump.
GoatThroat pumps work by pressurizing a container to dispense liquids with one touch, as easily as using a faucet. A few strokes of the piston can pressurize any container from 2-gallon jugs to 55-gallon drums.
One-touch flow control dispenses liquids at a controlled rate to prevent waste, conserve inventory, and produce precisely measured amounts every time. Flow can be continuous, or adjusted to dispense liquids at rates up to 4.5 gallons per minute depending on viscosity
GoatThroat GT 200 pumps (blue color coding) are designed for use with general purpose liquids and chemicals. Fitted with EPDM drum seals (made of Ethylene-Propylene Rubber), GT 200 pumps are suitable for use with acids, acetates, alcohols and phosphates. A Santoprene drum seal (GT 200S) must be used with some substances
| Model Number | GT 200S |
|---|---|
| Series | GoatThroat Barrel Drum Pump |
| Max Flow (GPM.) | 5 |
| Max Flow GPH | 300 |
| TDH Maximum (Ft) | 11 |
| TDH Maximum (PSI) | 5 |
| Inlet Connection Type | FNPT |
| inlet size | 1" |
| Inlet (In.) | 1 |
| Outlet Connection Type | Barb |
| Outlet (In.) | 1 |
| Wetted Materials | PolyPro |
| Elastomers / O-ring | Neoprene |
| Diaphragm | Santoprene |
| Self Priming | Yes |
| Max Operating Temperature (F) | 110 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 3.000000 |
| Warranty (YRS.) | 1 |
