GNOK1.5/2C
-
Model Number:
60-61C4 PNC
-
Product Name:GNOK1.5/2C
-
Manufacturer:
-
Series (5 Models):
Model Number
60-61C4 PNC
$1,197.15
Pacer 60-61C4 PNC

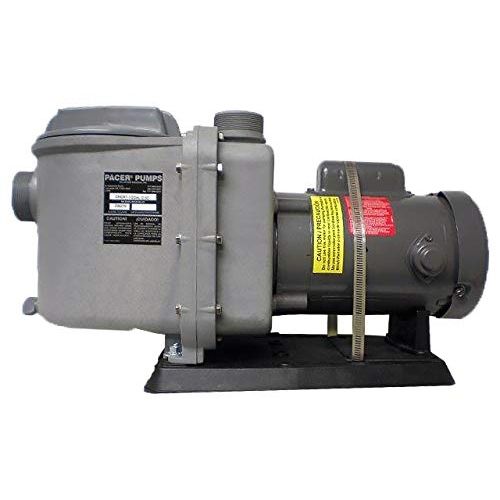

The self-priming series G pump is made in Noryl, providing a
maximum corrosion resistance in various water applications.
Pneumatic / air motor drive. The pump comes standard with 304
stainless external hardware. The pump is protected with a
basket-type strainer in polypropylene. The large cover makes
initial priming and removal of the strainer quick and easy. After
initial prime, the series G pump will lift up to 15 vertical feet
& remain primed even after shutdown. Note: The curve alpha
designation, which reflects different impeller diameters, is
reflected in the model Number's 4th digit.
| Model Number | 60-61C4 PNC |
|---|---|
| Series | G Selfprime w/strainer To 100gpm |
| Max Flow (GPM.) | 80 |
| Max Flow GPH | 4800 |
| TDH Maximum (Ft) | 57 |
| TDH Maximum (PSI) | 25 |
| Horse Power (HP) | 1 |
| Horsepower (IE .5, 1, 1.5, 20) | 1.0000 |
| Inlet Connection Type | FNPT |
| inlet size | 2in |
| Inlet (In.) | 2 |
| Outlet Connection Type | MNPT |
| Outlet (In.) | 2 |
| Wetted Materials | 304SS, Noryl-PPO |
| Elastomers / O-ring | EPDM |
| Motor | Air-Pneumatic |
| Speed (RPM.) | variable |
| Motor Frame | 56C |
| Self Priming | Yes |
| Suction Lift (FT.) | 15 |
| Max Operating Temperature (F) | 120 |
| Viscosity | Milk 3.20 cp 40.00 ssu |
| Shaft | Sleeved CS |
| Length (In.) | 13.000000 |
| Mechanical Seal | TYPE 6 |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Impeller Number (In.) | C |
| Other | Connections are dual 1.5 / 2" NPT. FLA 6 at 115v. |
| Drain | Yes |
| Port Rotation | Yes |
| Weight (Lbs) | 28.000000 |
| Warranty (YRS.) | 1 |
