Fuel Transfer Pump
-
Model Number:
U26A
-
Product Name:Fuel Transfer Pump
-
Manufacturer:
Model Number
U26A
$3,542.56

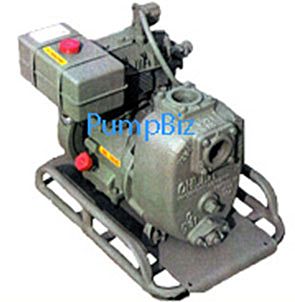

Darley U26A
U26A Fuel Pump for transfer.Features:◦Flows Up to 160
GPM◦Heads to 145 FT◦Suction Lifts to 25
FT◦Self-Lubricating Mechanical Seal◦Dynamically
Balanced Bronze Open Trash Type Impeller◦2" NPT Replaceable
Suction and Discharge Flanges◦Gas, Diesel or Electric Motor
Drive Available◦Aluminum Alloy Casing, Support Bracket and
Replaceable Flanges
| Model Number | U26A |
|---|---|
| Max Flow (GPM.) | 160 |
| Max Flow GPH | 9600 |
| TDH Maximum (Ft) | 145 |
| Inlet Connection Type | FNPT |
| inlet size | 2in |
| Inlet (In.) | 2 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 2 |
| Wetted Materials | Aluminum, Bronze |
| Motor | Gas Engine |
| Speed (RPM.) | 3450 |
| Self Priming | Yes |
| Suction Lift (FT.) | 25 |
| Mechanical Seal | No |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Impeller Material | Bronze, open trash type |
| Drain | Yes |
| Port Rotation | Yes |
| Country of Manufacture | United States |
| Weight (Lbs) | 125.000000 |
| Warranty (YRS.) | 1 |
>
