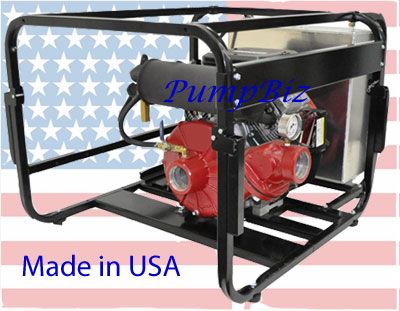

Fire pump High Pressure Pump
-
Model Number:
25FP23AR
-
Product Name:Fire pump High Pressure Pump
-
Manufacturer:
-
Series (14 Models):
AMT 25FP23AR
Fire Pump High Pressure 23HP, AMT Pump
IPT Engine Driven High Pressure Fire pumps deliver excellent pressure and flow for use in many applications including: fire protection, emergency fire fighting, washdown and AG Sprinkler. 23HP Briggs Vanguard twin cylinder gas engine with electric start. Portable units feature metal fuel tanks installed on engine or frame depending on model. 12 Volt DC electric start engines with recoil starter. These pumps are equipped with FKM® Silicon Carbide/Carbon seal and FKM® O-rings/gaskets.
- Aluminum Construction with Replaceable Hard Coat AnodizedWear Ring
- FKM® Mechanical Seal with SiliconCarbide & Carbon Faces
- 2-1/2½ NPT Port Sizes
- Exhaust Prime or Hand Prime Dependingon Model
- Prime Assist to 19 Ft.
- Built-in Discharge Check Valve
- Discharge Pressure Gauge Included
- Suction Strainer, Nipples and Heavy DutySteel Roll Frame with Battery Tray Included
- Maximum Head up to 165 PSI/ 380’ TDH
- Delivers to 270 GPM
- Available with B&S Vanguard, HondaGasoline or Yanmar Diesel with 12 VoltDC Electric Start
- Optional NPT to Fire Hose ThreadAvailable – See Accessories Page
- Optional Wheel Kit Available
| Model Number | 25FP23AR |
|---|---|
| part number | 25FP23AR-999- |
| Series | Engine Driven Two Stage High Pressure Fire Pumps |
| Max Flow (GPM.) | 260 |
| Max Flow GPH | 15600 |
| TDH Maximum (Ft) | 380 |
| TDH Maximum (PSI) | 164 |
| Horsepower (IE .5, 1, 1.5, 20) | 23.0000 |
| Inlet (In.) | 2.5 |
| Outlet (In.) | 2.5 |
| Wetted Materials | Aluminum, Cast Iron |
| Suction Lift (FT.) | 3 |
| Max Operating Temperature (F) | 120 |
| Max Particle Size (In) | .2 |
| Viscosity | Water 1.00 cp 31.00 ssu |
| Stages | 2 |
| Other | amt pump |
| Impeller Material | Closed |
| Port Rotation | Yes |
| Weight (Lbs) | 50.000000 |
| Quick Ship | Yes |
| UPC | 072684652523 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 200 Feet Of Head | 220 |
| GPM Of Water At 350 Feet Of Head | 90 |
AMT Pump Company is A Subsidiary of The Gorman-Rupp Company located in Mansfield, Ohio. AMT offers over 1000+ different standard model numbers of which 400+ are readily available and offered as QSP, Quick Ship Products. AMT manufactures and sells Industrial / Commercial pumps & accessories through authorized distributors.
Virtually every product AMT sells is engineered and designed by the company. Pump components are machined, assembled and tested at the Royersford, Pennsylvania facility.
AMT’s unique designs and patented products have made the company the industry leader for their high quality pumps.
