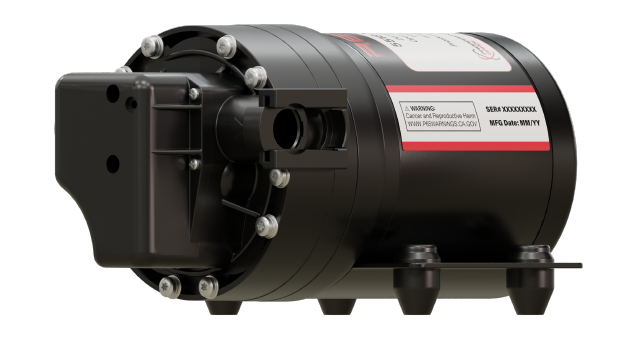

FatBoy Demand Diaphragm Pump

  • Manufacturer:
  • Product Name:
    FatBoy Demand Diaphragm Pump
  • Model Number:
    5538-1E1-69C
  • Voltage:
    115
  • Gallons Per Hour:
    420 (7 GPM)
7GPM 60PSI 115V NPT Demand
Model Number
5538-1E1-69C
$412.56
5538-1E1-69C remco fatboy water pump

THE PROFLO FATBOY® PUMPS UP THE VOLUME WITH 7GPM. Demanding industrial pump environments require precise engineering and quality components. The ProFlo FatBoy® was designed with both. To maximize the potential of all five diaphragm chambers, Remco matched it with a high torque, completely sealed motor. For its size, it is one of the most powerful and productive diaphragm pumps you can buy, pumping up to 7.0 gallons per minute. Demand pumps operated as a positive displacement pump which has a pressure switch built in. When flow is open the pump runs, when the discharge is closed or restricted to much the pressure switch senses the set point and turns the pump off. If your specifications call for low noise, smooth operation, continuous operation and high capacity, the Fat Boy will meet the challenge. Remco Typical Applications: heavy Duty Spraying, high Pressure Cleaning, agricultural Spraying, bulk Transfer, starter Fertilizer, de-icing or Deicer fluid, roof Cleaning *Santoprene- EPDM-based thermoplastic elastomer and is resistant to mild acids, some solvents and bases

Uses such as snow melt liquid deicer deicing: Potassium Acetate, Sodium Formate, 32% Calcium Chloride, FAA Compliant Ice Melters, Peladowï½®, LS25, LS-25 CI, and a variety of Environmentally Friendly products SnowMelt. Prewetting / anti-icing, salt pre-wetting systems, salt brine, calcium & Mag chloride. replace 4311-035 shurflo

12vdc wash down centrifugal pump

More Information
Model Number 5538-1E1-69C
part number 5538-1E1-69C
Warranty (YRS.) 1
Max Flow (GPM.) 7
Max Flow GPH 420
TDH Maximum (Ft) 138
TDH Maximum (PSI) 60
Inlet Connection Type FNPT
Inlet (In.) 0.5
Outlet Connection Type FNPT
Outlet (In.) 0.5
Wetted Materials PolyPro-GF
Elastomers / O-ring Viton
Voltage (V) 115
Voltage (Range) 110-120
Phase (Ø) Single (1)
Motor TENV
Self Priming Yes
Suction Lift (FT.) 14
Max Operating Temperature (F) 140
Viscosity SAE 10 oil 88.00 cp 500.00 ssu
Mechanical Seal No
Applications Chemical, Constant Pressure, Contractor, Coolant, Dewatering, Dosing, Drum, Flooded Suction, High Pressure, Ink, Irrigation, Machine Tool, Paint, Parts Washer, Self-Priming, Sump
Cord Size 14/2
Cord Length (Ft.) 1
Duty Under 25 amps 60 min.
Drain No
Port Rotation No
Country of Manufacture United States
Weight (Lbs) 11.000000
Time to Ship (DAYS) 5-7 days
>

Remco Professional Grade pumps.

Quality starts with our vision to produce fluid handling equipment that excels in performance and reliability, and surpasses the end user’s expectations.

Industry professionals choose Remco first because of our commitment to pro-level quality, engineering and customer service.

 The Remco PowerRV Series provides a solution for every RV fluid pumping challenge, from potable water to gray and black water.

Electric diaphragm demand pumps for fluid handling applications such as purification, light industrial, food and beverage, agricultural, and automotive.

Available in 12VDC, 24VDC, 115VAC
