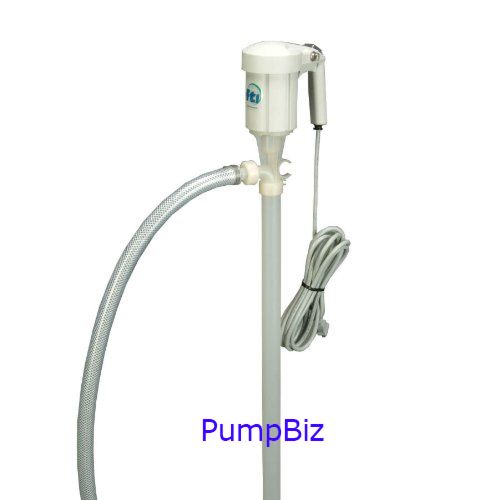

EFV Drum pump kit Includes EFV-40, S1 motor(115V), 5 ft PVC hose & clamp
-
Model Number:
DEFV006
-
Product Name:EFV Drum pump kit Includes EFV-40, S1 motor(115V), 5 ft PVC hose & clamp
-
Manufacturer:
-
Series (5 Models):
Finish Thompson (FTI) DEFV006
The EF Series drum (container) pump is an ideal combination of performance and value. The sealless design and carefully chosen, corrosion resistant materials of construction assure a long, trouble-free life. It is lightweight and easy to use yet amazingly powerful. EFV-40 Medium Duty Drum Pump with 40" Tube. Shaft Material: alloy 625, Outer Material: Polypropylene/PVDF. The EF Series drum (container) pump is an ideal combination of performance and value. The sealless design and carefully chosen, corrosion resistant materials of construction assure a long, trouble-free life. It is lightweight and easy to use yet amazingly powerful. Application examples include: light acids and bases, bleach, cleaners, plating solutions, Diesel Exhaust Fluid (DEF/AdBlue). Open Drip Proof, Splashproof 1/3 HP Motor (115VAC/60 Hz): Ergonomic, lightweight design; Continuous duty; Double insulated; 12 ft. (3.5 m) cord w/ plug, circuit breaker, & manual reset. Universal - Two speed.
Drum Pump Kit Includes 5FZU7 (3 items):
- EFV-40 Pump
- Outer Tube -- Pure PP/Pure PVDF
- Internals -- Alloy 625, FKM, PTFE, ETFE, PP
- Tube Dia. -- 1-5/16 inch
- Discharge -- 3/4 inch Hose Barb
- Max Temp -- 150 °F
- Min Temp -- - 17°F
- S1 motor(115V)
- Ergonomic, lightweight design with downdraft cooling. Continuous duty, dual speed, double insulated. 12 ft. (3.5 m) cord with plug and manual reset circuit breaker included.
- Certification -- CSA
- Electrical Requirements -- 115VAC/60 Hz
- Input W -- 230
- Output W -- 110
- RPM -- 8,000/14,000
- Maximum Viscosity cP -- 300
- 5 ft PVC hose & clamp
| Model Number | DEFV006 |
|---|---|
| Series | Drum Pump Kits |
| Wetted Materials | 316SS, PolyPro |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor | ODP |
| Self Priming | No |
| Max Operating Temperature (F) | 80 |
| Max Specific Gravity | 1.000000 |
| Max Particle Size (In) | .1 |
| Viscosity | SAE 30 oil 352.00 cp 2000.00 ssu |
| Shaft | FRP |
| Mechanical Seal Type | Single |
| Coupling | Y |
| Other | COUPLING INSERT J103422, COUPLING HALF 107300 |
| Approvals | CARB, ETL, SSPMA |
| Rotation | cw |
| Pump Bearing | Rulon |
| Low Oil Shutdown | Yes |
| Impeller Material | plastic |
| Cord Length (Ft.) | 8 |
| Duty | Continouos |
| Drain | Yes |
| Port Rotation | Yes |
| Weight (Lbs) | 20.000000 |
| Warranty (YRS.) | 1 |
