Eccentric 12v Fuel Transfer Pump

Model Number
FR1612
Specifications
$125.00
Email to a Friend Price Match
Add to Wish List Add to Compare
Email

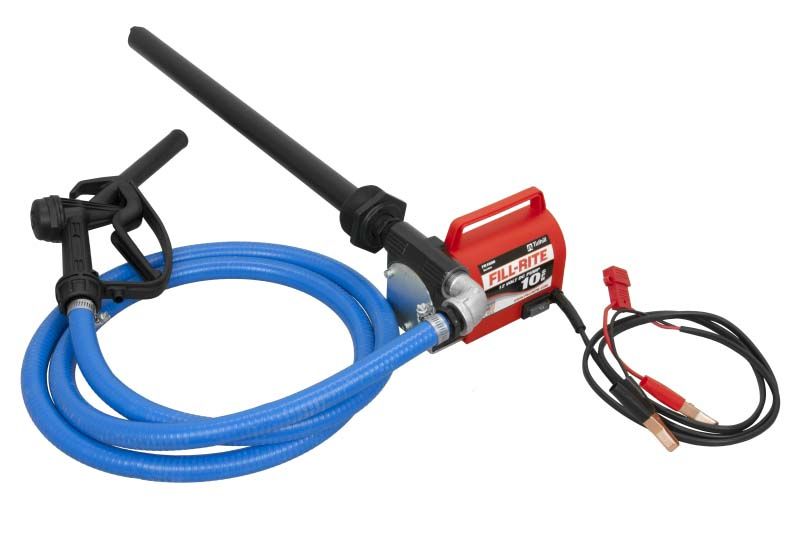

Fill-Rite FR1612 Eccentric 12v Fuel Transfer Pump
Fill-Rite FR1612 Eccentric 12v Fuel Transfer Pump Eccentric 12v Fuel Transfer Pump

Fill-Rite FR1612

This Fill-Riteï½® diesel fuel transfer pump delivers diesel fuel or antifreeze. Not to be used for dispensing gasoline, alcohol, or waste vegetable oil to be used for biodiesel fuel
  • Self-priming eccentric pump, Integral Bypass Valve
  • Internal bypass
  • 12 volt DC permanentmagnet motor
  • 12 Volt - up to 7 GPM (26 LPM) 1400 RPM, 15 minute duty cycle
  • Includes 6' Battery cables and clips, 8' hose and nozzle
  • Inlet filter 60 Mesh (330 Micron) extends life of internal pump gears
  • Applications
    • Warning: Not to be used for dispensing gasoline, alcohol, or waste vegetable oil to be used for biodiesel fuel.
For diesel fuel, this pump candeliver approximately 10 GPM at 12 Volts DC. Flow rates will be muchlower when pumping oil due to viscosity.

It's self priming, has an integral bypass valve, comes with a 8 foot hose, a nice mesh filter, a filler handle, and cables to hook it up with. It also carries the Fill-Rite name, which means it's a great, high quality product. 100 mesh (149 micron) suction strainer x 6" L. It has more surface area and will allow the pump to handle thicker oil.

More Information
Model Number FR1612
Series Fuel transfer pumps
Max Flow (GPM.) 10
Max Flow GPH 600
Inlet Connection Type Barb
Inlet (In.) 0.75
Outlet Connection Type Barb
Outlet (In.) 0.75
Wetted Materials Brass, Cast Iron, Nylon
Elastomers / O-ring Buna-Nitrile
Voltage (V) 12DC
Voltage (Range) 12/24/36 VDC
Motor ODP
Speed (RPM.) 1725
Self Priming Yes
Suction Lift (FT.) 6
Max Operating Temperature (F) 100
Viscosity SAE 10 oil 88.00 cp 500.00 ssu
Mechanical Seal No
Mechanical Seal Type Double
Other 12/24vdc. Duty cycle: Not for continuous operation: 12 VDC - 30 minutes, 24 VDC - 10 minutes. Here what users are saying "This is my favorite powered oil collection pump. The reason I like it so much is because it's so robust. The motor in it is HUGE!!! It's also nice because it comes with everything you need when you get one. Instead of having to get the hoses, clamps, filter, & all that, it's just all included. Nice pump! My favorite for collecting with."
Drain Yes
Port Rotation Yes
Weight (Lbs) 22.000000
Warranty (YRS.) 1
>
