CT High Pressure Pump

Model Number:

CT05
Product Name:

CT High Pressure Pump
Manufacturer:

Myers Pumps
Series (24 Models):

CT High Pressure Centrifugal Pumps

1/2HP 110-120/230v

Model Number

CT05

Specifications

$845.00

Email to a Friend Price Match

Skip to the end of the images gallery

Skip to the beginning of the images gallery

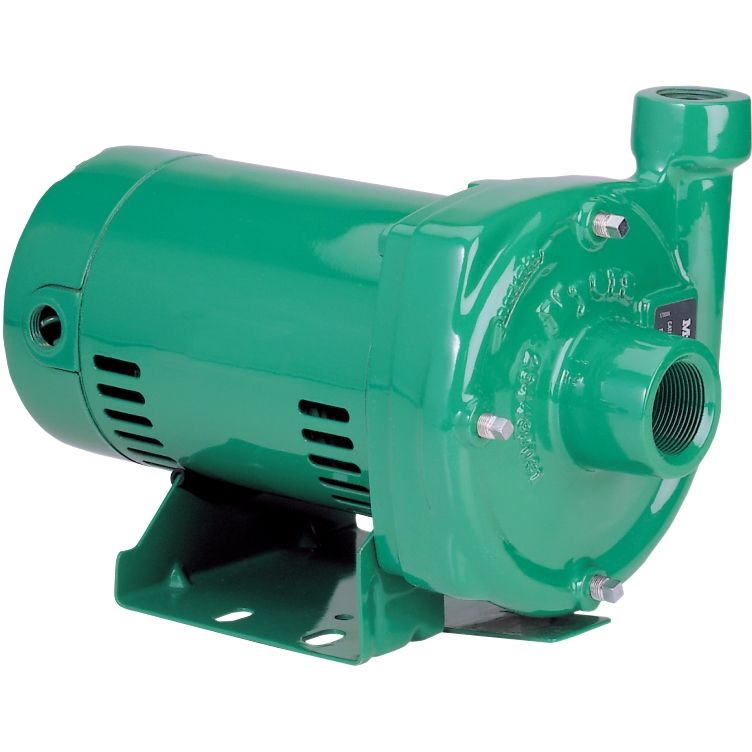

Myers CT05

CT High Pressure Pump, Centrifugal pump 26459D100. The Myers CT Series of centrifugal pumps are designed to meet your toughest pumping requirements. Rugged cast iron construction can be coupled with either a corrosion resistant composite, or a lead-free brass impeller. Versatile design features allow Crusader pumps to be installed with either a vertical or horizontal discharge. The CT Series is ideal for circulating, cooling towers, liquid transfer, sprinkling systems, general industrial service, irrigation, air conditioning, cooling tower and booster applications.

Double-Ball Bearing Motor
Continuous Duty Rated
Composite Impeller Rated to 140°F
Maximum Working Pressure of 125 PSI
The compact, back pullout design provides easy installation and serviceability.

More Information
Model Number	CT05
Series	CT High Pressure Centrifugal Pumps
Max Flow (GPM.)	34
Max Flow GPH	2040
TDH Maximum (Ft)	81
TDH Maximum (PSI)	35
Horse Power (HP)	1/2
Horsepower (IE .5, 1, 1.5, 20)	0.5000
Inlet Connection Type	FNPT
inlet size	1 ¼"
Inlet (In.)	1.25
Outlet Connection Type	FNPT
Outlet (In.)	1
Wetted Materials	CI-Plastic
Elastomers / O-ring	Buna-Nitrile
Voltage (V)	115/230
Voltage (Range)	110-120/220-240
Phase (Ø)	Single (1)
Motor Frequency	60
Motor	ODP
Speed (RPM.)	3450
Motor Frame	56C
Self Priming	No
Max Operating Temperature (F)	140
Shaft	304SS
Mechanical Seal Face	Carbon-ceramic
Mechanical Seal Type	Single
Impeller Size (IN.)	4.750000
Impeller Material	Plastic, closed
Cord Length (Ft.)	0
Duty	Continuous
Drain	Yes
Port Rotation	Yes
Weight (Lbs)	30.000000
