Cast iron Suction Coolant Pump

3/4 HP 230/460V
Model Number
5370-95
$950.00

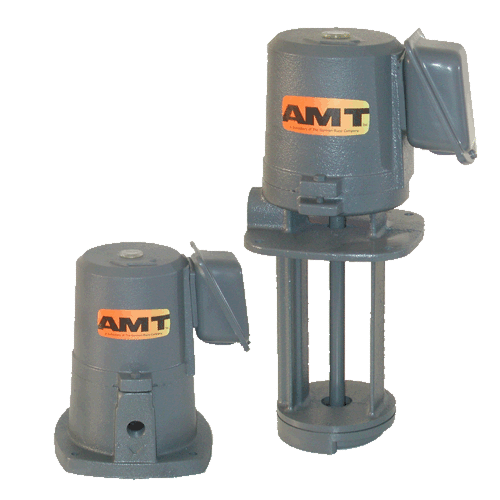

Cast iron Suction Coolant Pump

AMT 5370-95

This pump is designed for the circulation and spraying of coolants and cutting oils.

  • Fully Interchangeable with Units Furnished on Most Imported Machine Tools
  • 1/8 to 1 HP Totally Enclosed Motors
  • 2 Pole, 3450 RPM
  • Single or Three Phase Motors
  • Stainless Steel or Composite Semi-open Impellers Option
  • Immersion and Suction Types
  • Cast Iron Construction
  • Max. Temperature 180ï½°F
  • Max. Flow 56 GPM (water)
  • Max. Head 60 ft. (water)
  • Handles Viscosity up to 500 SSU
  • Standard Replacement for Machine Tool Industry
Series: Suction Coolant Oil Pumps
More Information
Model Number 5370-95
part number 5370-999-95
Series Suction Coolant Oil Pumps
Max Flow (GPM.) 52
Max Flow GPH 3120
TDH Maximum (Ft) 55
TDH Maximum (PSI) 24
Horse Power (HP) 3/4
Horsepower (IE .5, 1, 1.5, 20) 0.7500
Inlet Connection Type FNPT
inlet size 1"
Inlet (In.) 1
Outlet Connection Type FNPT
Outlet (In.) 1
Wetted Materials CI-SS
Voltage (V) 230/460
Voltage (Range) 220-240/460-480
Phase (Ø) Three (3)
Motor Frequency 60
Speed (RPM.) 3450
Self Priming Yes
Length (In.) 3.000000
Mechanical Seal No
Mechanical Seal Type Double
Motor Bearings Ball
Cord Length (Ft.) 0
Drain Yes
Port Rotation Yes
Country of Manufacture United States
Weight (Lbs) 40.000000
Quick Ship Yes
UPC 072684650578
Warranty (YRS.) 1

Supporting Docs

Supporting Docs
pdf
(Size: 528.55 KB) Extension: pdf
pdf
(Size: 54.3 KB) Extension: pdf
pdf
(Size: 2.57 MB) Extension: pdf

AMT Pump Company is A Subsidiary of The Gorman-Rupp Company located in Mansfield, Ohio. AMT offers over 1000+ different standard model numbers of which 400+ are readily available and offered as QSP, Quick Ship Products. AMT manufactures and sells Industrial / Commercial pumps & accessories through authorized distributors.

Virtually every product AMT sells is engineered and designed by the company. Pump components are machined, assembled and tested at the Royersford, Pennsylvania facility.

AMT’s unique designs and patented products have made the company the industry leader for their high quality pumps.
