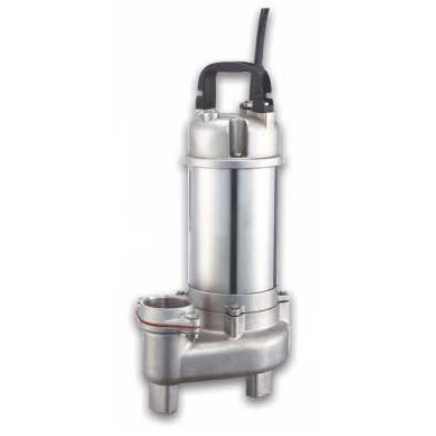

BSV Submersible Stainless Vortex Sewage Pump
-
Model Number:
2BSV051DS
-
Product Name:BSV Submersible Stainless Vortex Sewage Pump
-
Manufacturer:
-
Series (7 Models):
Barmesa 2BSV051DS
BSV Submersible Stainless Vortex Sewage Pump 2BSV-051DS 72090061
316SS Electric submersible trash pump for commercial applications where corrosion is a problem and reliability is required. 316SS is a superior grade of corrosion resistant steel, used in chemical sumps, salt water and more.
Series: BSV 0.5 to 7.5 HP - High Head - Spherical solids handling: 1½" to 2".
DISCHARGE: 2" NPT elbow & 3" vertical
LIQUID TEMPERATURE: 104 °F (40 °C).
VOLUTE: 316 series stainless steel.
MOTOR HOUSING: 316 series stainless steel.
MOTOR COVER: 316 series stainless steel.
SEAL PLATE: 316 series stainless steel.
IMPELLER: Design: 8 vane, semi-open Vortex. Material: 316 series stainless steel.
SHAFT: 416 series stainless steel.
HARDWARE: 316 series stainless steel.
GASKET: Buna-N
SEAL: Design: double, mechanical, oil filled chamber. Material: carbon-ceramic upper seal, silicon carbide lower seal, stainless steel spring.
MOTOR: For continuous duty, 1 & 3 phase, 3450 RPM, dry type, insulation class B, protection IP68, 115/230 volts.
BEARINGS: Ball, single row, permanently lubricated for radial and thrust load.
CORD ENTRY: Neoprene, 16 ft (0.5 to 3 HP).
OPTIONAL EQUIPMENT: Slide rail couplings for 2 to 7.5 HP.
| Model Number | 2BSV051DS |
|---|---|
| part number | 72090061 |
| Series | BSV Stainless Steel Submersible Pumps |
| Max Flow (GPM.) | 80 |
| Max Flow GPH | 4800 |
| TDH Maximum (Ft) | 35 |
| TDH Maximum (PSI) | 15 |
| Horse Power (HP) | 1/2 |
| Horsepower (IE .5, 1, 1.5, 20) | .5 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 2 |
| Wetted Materials | 316SS |
| Elastomers / O-ring | Buna-Nitrile |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor Amps (A) | 8 |
| Motor | Hermetically Sealed |
| Speed (RPM.) | 3450 |
| Max Operating Temperature (F) | 104 |
| Max Particle Size (In) | 1.5 |
| Viscosity | Vegetable Oil 34.60 cp 200.00 ssu |
| Stages | 1 |
| Mechanical Seal Face | Silicon Carbide |
| Mechanical Seal Type | Double |
| Impeller Material | 316SS, 8 vane, semi-open Vortex. |
| Cord Length (Ft.) | 16 |
| Duty | Continuous |
| Weight (Lbs) | 29.000000 |
| Warranty (YRS.) | 1.5 |
| GPM Of Water At 20 Feet Of Head | 30 |
