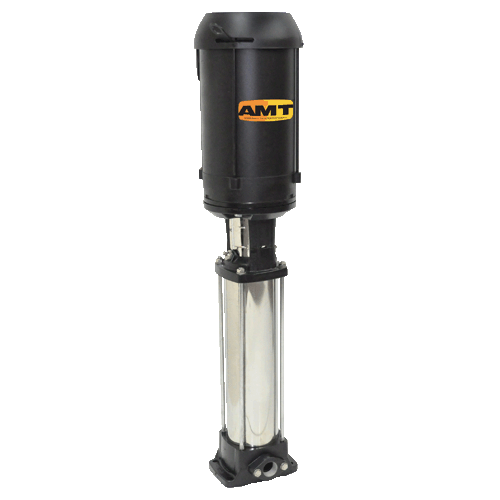

Booster Pump MSV5 2HP 5 stage pump
-
Model Number:
MSV5-5-1
-
Product Name:Booster Pump MSV5 2HP 5 stage pump
-
Manufacturer:
-
Series (5 Models):
115/230V/1 2HP
Model Number
MSV5-5-1
20% Off
Special Price
$994.50
Regular Price
$1,243.13
AMT MSV5-5-1
Multistage Vertical booster pump. Commercial duty pump for
chillers, hot process water, boosting city water pressure, boiler
feed, irrigation, fire sprinkler system, washdown.
- 304 Series Stainless Steel Components with Teflonï½® Wear Rings
- Cast Iron Base & Adapter
- 1-1/4ï½½ NPT Cast Iron Flanges
- NEMA 56C or 182/4 TC Dual Cycle 50/60 Hz,
- Single or Three Phase TEFC Motors
- EPDM/Tungsten Carbide Seal with Easy
- Replacement Feature
- Optional ANSI/ASME 250# Flange Kit
- Models Available in 2 thru 24 Stages
| Model Number | MSV5-5-1 |
|---|---|
| part number | MSV5-999-5 |
| Series | MSV5 Multistage Pumps |
| Max Flow (GPM.) | 40 |
| Max Flow GPH | 2400 |
| Minimum Flow (GPM.) | 5 |
| TDH Maximum (Ft) | 150 |
| TDH Maximum (PSI) | 62 |
| Horse Power (HP) | 2 |
| Horsepower (IE .5, 1, 1.5, 20) | 2 |
| Inlet (In.) | 1.25 |
| Outlet (In.) | 1.25 |
| Wetted Materials | 304SS, Cast Iron |
| Voltage (V) | 115/230 |
| Voltage (Range) | 110-120/220-240 |
| Motor | TEFC |
| Speed (RPM.) | 3450 |
| Viscosity | Water 1.00 cp 31.00 ssu |
| Stages | 5 |
| Length (In.) | 29 |
| Motor Bearings | Ball |
| Coupling | Y |
| Other | amt pump |
| Impeller Material | 304SS, Closed |
| Cord Length (Ft.) | 0 |
| Port Rotation | Yes |
| Weight (Lbs) | 50.000000 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 150 Feet Of Head | 37 |
| GPM Of Water At 200 Feet Of Head | 30 |
>
AMT Pump Company is A Subsidiary of The Gorman-Rupp Company located in Mansfield, Ohio. AMT offers over 1000+ different standard model numbers of which 400+ are readily available and offered as QSP, Quick Ship Products. AMT manufactures and sells Industrial / Commercial pumps & accessories through authorized distributors.
Virtually every product AMT sells is engineered and designed by the company. Pump components are machined, assembled and tested at the Royersford, Pennsylvania facility.
AMT’s unique designs and patented products have made the company the industry leader for their high quality pumps.
