Agricultural Portable Gas Driven Pump
-
Model Number:
4225-V5
-
Product Name:Agricultural Portable Gas Driven Pump
-
Manufacturer:
-
Series :
Honda GC160 FKM
Model Number
4225-V5
$1,057.19
AMT 4225-V5

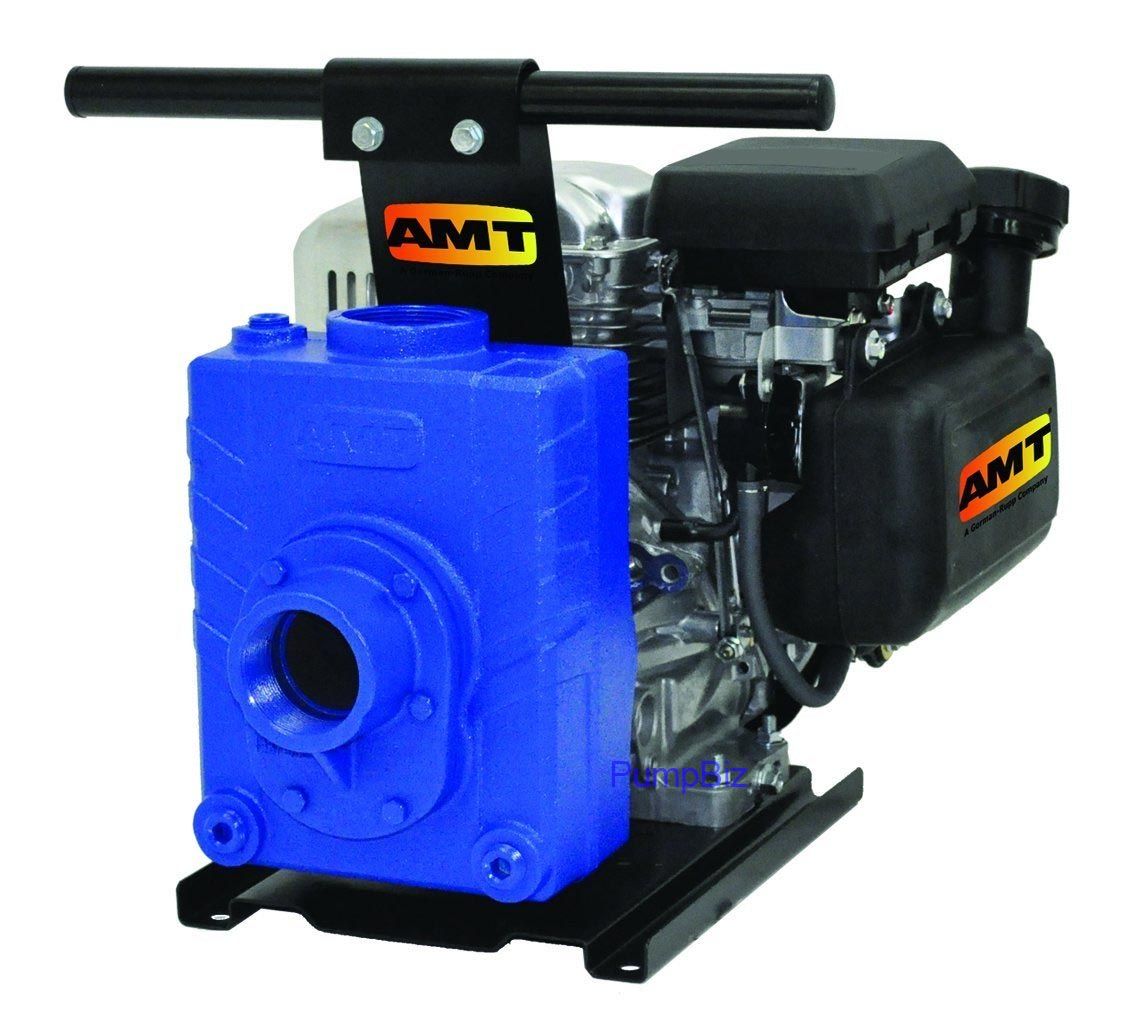

Agricultural 2" Dewatering pump has FKM seals and Honda OHC engine. Cast iron pump 9600GPH for use in AG alachlor herbicides, construction, irrigation, fire fighting & general dewatering, spraying herbicides. 5 HP Honda GC160. 1.8 Qt. gas tank will allow for up to a 60 min. run time. FKM seal.
Great pump for AG fertilizer, asphalt seal coat, driveway sealer sealcoating, diesel fuel caddie.
4225-V5 Same as Teelï½® part See Curve "C" on performance chart.
2AG5QCV
Series: Gas Portable Pumps 58-140 gpm
| Model Number | 4225-V5 |
|---|---|
| part number | 4225-999-V5 |
| Series | Gas Portable Pumps 58-140 gpm |
| Max Flow (GPM.) | 130 |
| Max Flow GPH | 7800 |
| TDH Maximum (Ft) | 120 |
| TDH Maximum (PSI) | 52 |
| Horse Power (HP) | 5 |
| Horsepower (IE .5, 1, 1.5, 20) | 5.0000 |
| inlet size | 2in |
| Inlet (In.) | 2 |
| Outlet (In.) | 1 |
| Wetted Materials | Cast Iron |
| Elastomers / O-ring | Buna-Nitrile |
| Motor Amps (A) | 2 |
| Motor | ODP |
| Self Priming | ---- |
| Suction Lift (FT.) | 5 |
| Max Operating Temperature (F) | 120 |
| Max Particle Size (In) | .2 |
| Viscosity | Vegetable Oil 34.60 cp 200.00 ssu |
| Shaft | 416SS |
| Length (In.) | 17.000000 |
| Mechanical Seal Face | Carbon-ceramic |
| Mechanical Seal Type | Single |
| Impeller Size (IN.) | b |
| Impeller Number (In.) | 3 |
| Other | amt pump |
| Rotation | cw |
| Drain | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 50.000000 |
| Quick Ship | Yes |
| UPC | 072684650794 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 40 Feet Of Head | 150 |
| GPM Of Water At 100 Feet Of Head | 60 |
