4" Diesel Engine Trash Pump

Hatz Diesel Engine 11HP
Model Number
3993-Z6
23% Off Special Price $7,873.25 Regular Price $10,225.00

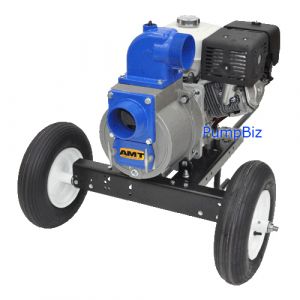

Diesel Engine Powered Trash Pump. Discharge can rotate in 90 degree increments. Engine Driven Trash pumps are designed for applications which require high flow efficiency and solid handling capability. These pumps are constructed of heavy duty sand cast aluminum components featuring removeable/replaceable cast iron volutes, impellers and wearplates. Simple cleanout design permits easy removal of trash and debris without disconnecting hoses. Cast iron discharge port rotates in 90ï½° increments. 4ï½½ Models Feature Base, Rails and 16ï½½ Tires.

Features and Benefits

* Cast iron and cast-aluminum constructions* Electric Start (battery sold sep.), Recoil manual start also.* Solids handling up to 2" diameter* Self-priming to 20'* Silicon carbide mechanical seals* Hatz Diesel engine 1B50* Pumps include heavy-duty Wheel kit and Base Rails for skid or portable use.* 4" NPT port size. See curve 'F'

For Road Trailer Mounted Trash pumps

Battery is 8AU1L

ON SALE 3993-D6 WARNING: Use only with nonflammable liquids compatible withpump component materials and in nonflammable/nonexplosive atmospheres.

Series: Gas Diesel Engine Trash Pumps
More Information
Model Number 3993-Z6
part number 3993-999-Z6
Series Trash Pumps Gas Diesel Engine Powered
Max Flow (GPM.) 633
Max Flow GPH 37980
TDH Maximum (Ft) 120
TDH Maximum (PSI) 52
Horse Power (HP) 11
Horsepower (IE .5, 1, 1.5, 20) 11.0000
Inlet Connection Type MNPT
inlet size 4"
Inlet (In.) 4
Outlet Connection Type MNPT
Outlet (In.) 4
Wetted Materials Aluminum, Cast Iron
Elastomers / O-ring Buna-Nitrile
Motor Diesel Engine
Speed (RPM.) 3450
Self Priming Yes
Suction Lift (FT.) 20
Max Operating Temperature (F) 180
Viscosity Cream 16.50 cp 100.00 ssu
Shaft 416SS
Mechanical Seal Face SiC
Mechanical Seal Type Single
Impeller Number (In.) F
Other Viton seal
Impeller Material CI, Non-Clog
Drain Yes
Port Rotation Yes
Run Time (HR.) 1.8H
Fuel Tank Size 1.3G
Country of Manufacture United States
Weight (Lbs) 340.000000
UPC 072684650643
Warranty (YRS.) 1
GPM Of Water At 40 Feet Of Head 480
GPM Of Water At 60 Feet Of Head 330
GPM Of Water At 70 Feet Of Head 260
GPM Of Water At 80 Feet Of Head 170
