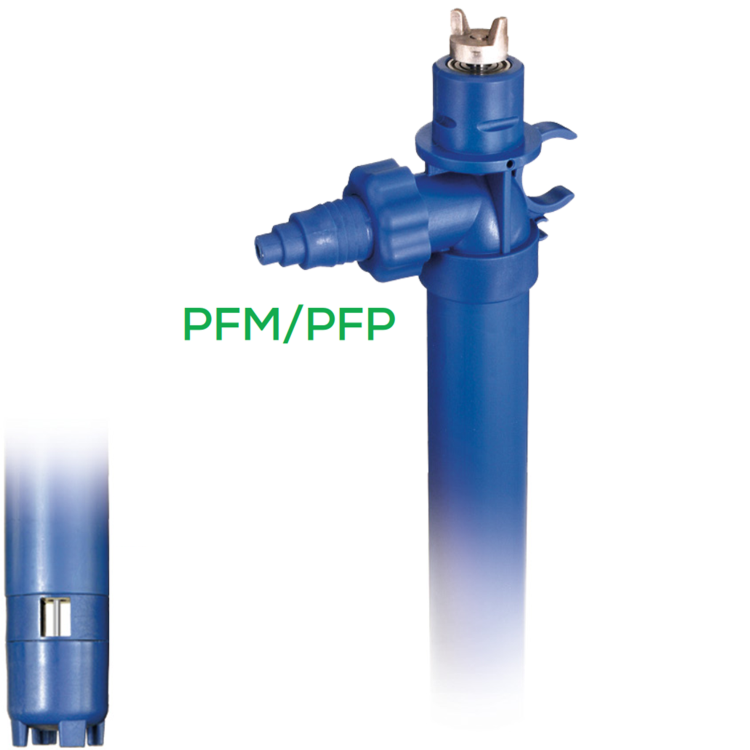

27 in. Polypropylene Drum Pump for Corrosive fluids (caustics, acids, salts)
-
Model Number:
PFP-27
-
Product Name:27 in. Polypropylene Drum Pump for Corrosive fluids (caustics, acids, salts)
-
Manufacturer:
-
Series (14 Models):
Model Number
PFP-27
$554.65
Finish Thompson (FTI) PFP-27
Chemical Industrial Drum Barrel Pump PFP - Polypropylene drum pumps for corrosive liquids (acids, caustics, salts, plating solutions) 500 cPs. Pump only, motor to be ordered separately. Shaft is Inconel Alloy 625. DPFP005
Series: Chemical Industrial Drum Pump
| Model Number | PFP-27 |
|---|---|
| part number | DPFP005 |
| Series | Finish Thompson Chemical Industrial Drum Pump |
| Max Flow (GPM.) | 40 |
| Max Flow GPH | 2400 |
| TDH Maximum (Ft) | 80 |
| Outlet Connection Type | Barb |
| Outlet (In.) | 1 |
| Wetted Materials | PolyPro |
| Elastomers / O-ring | FKM |
| Motor Frequency | 60 |
| Max Operating Temperature (F) | 80 |
| Max Specific Gravity | 1.000000 |
| Max Particle Size (In) | .1 |
| Viscosity | SAE 30 oil 352.00 cp 2000.00 ssu |
| Shaft | FRP |
| Length (In.) | 27 |
| Mechanical Seal Type | Single |
| Coupling | Y |
| Other |  |
| Approvals | CARB, ETL, SSPMA |
| Rotation | cw |
| Pump Bearing | Rulon |
| Low Oil Shutdown | Yes |
| Impeller Material | plastic |
| Duty | Continouos |
| Drain | Yes |
| Port Rotation | Yes |
| Weight (Lbs) | 5.000000 |
