24vdc Demand Pump

  • Model Number:

    2452-1H1-20B

  • Product Name:
    24vdc Demand Pump
  • Manufacturer:
2GPM 80PSI
Model Number
2452-1H1-20B
$173.64

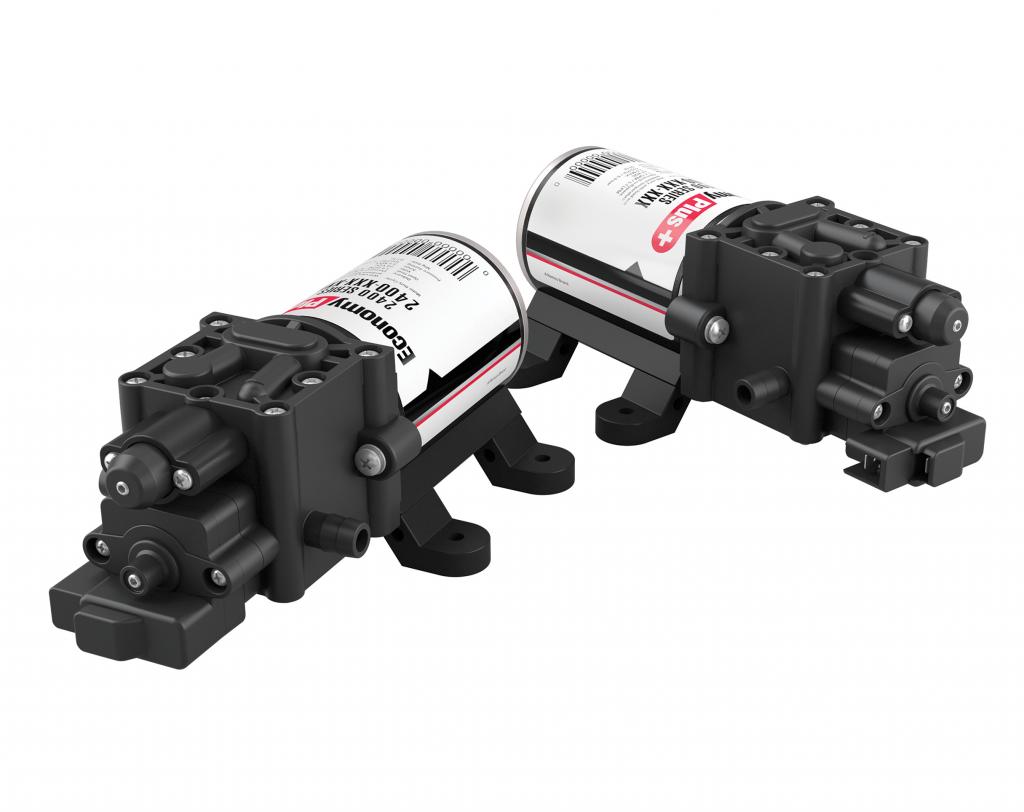

24vdc Demand Pump

Remco 2452-1H1-20B

Demanding industrial pump environments require precise engineering and quality components葉he demand pump was designed with both. Demand pumps operated as a positive displacement pump which has a pressure switch built in. When flow is open the pump runs, when the discharge is closed or restricted to much the psi switch senses the set point and turns off the pump automatically. For itç—´ size, it is one of the most powerful and productive diaphragm pumps you can buy, pumping up to 2.0 gallons per minute. If your specifications call for low noise, smooth operation, continuous operation and high capacity, it will meet the challenge. 3/8"FNPT threads can easily be supplied with garden hose adapters. Typical Applications:è±eavy Duty Sprayingè±igh Pressure Cleaning柊gricultural Spraying稗ulk Transfer百tarter Fertilizerç–‹e-icingç´oof Cleaning *Santoprene- EPDM-based thermoplastic elastimer and is resistant to mild acids, some solvents and bases
More Information
Model Number 2452-1H1-20B
Max Flow (GPM.) 2
Max Flow GPH 120
TDH Maximum (Ft) 158
TDH Maximum (PSI) 80
Inlet Connection Type FNPT
Inlet (In.) 0.375
Outlet Connection Type FNPT
Outlet (In.) 0.375
Wetted Materials PolyPro-GF
Elastomers / O-ring FKM
Diaphragm Santoprene
Voltage (V) 24DC
Voltage (Range) 12/24/36 VDC
Phase (Ø) Single (1)
Motor Frequency 60-50
Motor TENV
Self Priming Yes
Suction Lift (FT.) 14
Max Operating Temperature (F) 140
Viscosity SAE 10 oil 88.00 cp 500.00 ssu
Mechanical Seal No
Cord Size 14/2
Cord Length (Ft.) 4
Drain No
Port Rotation No
Country of Manufacture United States
Weight (Lbs) 10.000000
Warranty (YRS.) 1
>

Remco Professional Grade pumps.

Quality starts with our vision to produce fluid handling equipment that excels in performance and reliability, and surpasses the end user’s expectations.

Industry professionals choose Remco first because of our commitment to pro-level quality, engineering and customer service.

 The Remco PowerRV Series provides a solution for every RV fluid pumping challenge, from potable water to gray and black water.

Electric diaphragm demand pumps for fluid handling applications such as purification, light industrial, food and beverage, agricultural, and automotive.

Available in 12VDC, 24VDC, 115VAC
