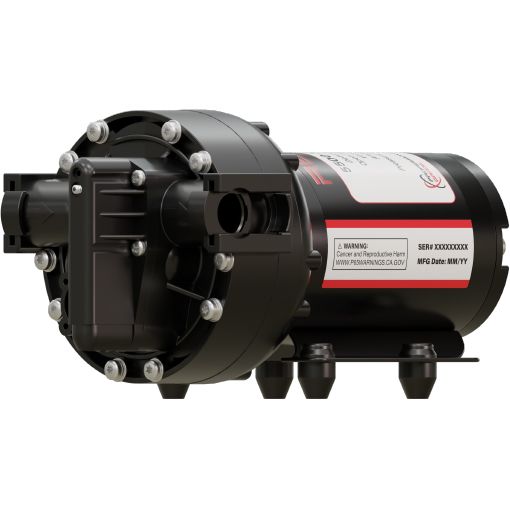

24v Demand Pump
-
Model Number:
5536-1E1-731A
-
Product Name:24v Demand Pump
-
Manufacturer:
-
Series (20 Models):
4GPM 60PSI 24DC .
This product has been discontinued and is no longer available. See related products for a similar alternative
Model Number
5536-1E1-731A
Remco 5536-1E1-731A
New Model Number: 5536-1E1-731B
Demanding industrial pump environments require precise engineering and quality components葉he demand pump was designed with both. Demand pumps operated as a positive displacement pump which has a pressure switch built in. When flow is open the pump runs, when the discharge is closed or restricted to much the psi switch senses the set point and turns off the pump automatically. For itç—´ size, it is one of the most powerful and productive diaphragm pumps you can buy, pumping up to 4.0 gallons per minute. If your specifications call for low noise, smooth operation, continuous operation and high capacity, it will meet the challenge. 1/2"FNPT threads can easily be supplied with garden hose adapters. Typical Applications:è±eavy Duty Sprayingè±igh Pressure Cleaning柊gricultural Spraying稗ulk Transfer百tarter Fertilizerç–‹e-icingç´oof Cleaning *Santoprene- EPDM-based thermoplastic elastimer and is resistant to mild acids, some solvents and bases
| Model Number | 5536-1E1-731A |
|---|---|
| Series | 5500 SERIES |
| Max Flow (GPM.) | 4 |
| Max Flow GPH | 240 |
| TDH Maximum (Ft) | 138 |
| TDH Maximum (PSI) | 60 |
| Inlet Connection Type | FNPT |
| Inlet (In.) | 0.5 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 0.5 |
| Wetted Materials | PolyPro-GF |
| Elastomers / O-ring | FKM |
| Diaphragm | Santoprene |
| Voltage (V) | 24DC |
| Voltage (Range) | 12/24/36 VDC |
| Motor | TENV |
| Self Priming | Yes |
| Max Operating Temperature (F) | 140 |
| Max Particle Size (In) | 0.0300 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Mechanical Seal | No |
| Cord Size | 14/2 |
| Cord Length (Ft.) | 4 |
| Drain | No |
| Port Rotation | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 10.000000 |
| Warranty (YRS.) | 1 |
>
Remco Professional Grade pumps.
Quality starts with our vision to produce fluid handling equipment that excels in performance and reliability, and surpasses the end user’s expectations.
Industry professionals choose Remco first because of our commitment to pro-level quality, engineering and customer service.
The Remco PowerRV Series provides a solution for every RV fluid pumping challenge, from potable water to gray and black water.
Electric diaphragm demand pumps for fluid handling applications such as purification, light industrial, food and beverage, agricultural, and automotive.
Available in 12VDC, 24VDC, 115VAC
