2" Semi-Trash Pump Electric start

Model Number:

STHP-50K
Product Name:

2" Semi-Trash Pump Electric start
Manufacturer:

Koshin Pumps

Electric Start 2" 9,480GPH

Model Number

STHP-50K

Specifications

10% Off Special Price $840.51 Regular Price $933.90

Email to a Friend Price Match

Skip to the end of the images gallery

Skip to the beginning of the images gallery

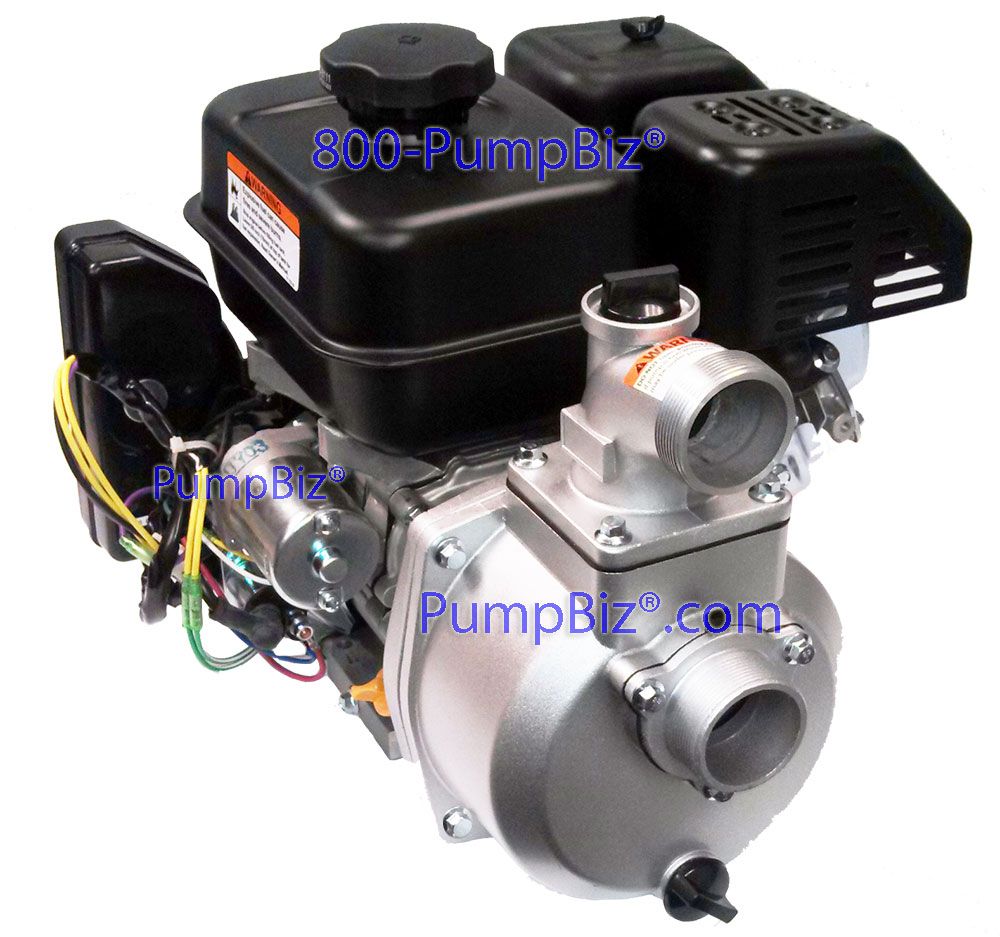

Semi-Trash Pump with electric start gas engine

Electric start Kohler engine on Semi-Trash Pump

2" self priming Pumps with electric start engine

Koshin STHP-50K

Semi-Trash Pump 2 inch, Solids handling Pump with Kohler engine with ELECTRIC start . All aluminum die cast pump housing, with CI impeller and volute for lightweight and portability along with long life internal parts. Cast Iron impeller and volute are Cast Iron. Metal Carry handle and base. 4-Cycle engine so NO mixing gas. Use standard automotive gasoline. Silicon carbide SiC seals are 2 times harder, 15% tougher, and 50% stronger than common ceramic seals.

GAs powered water pump for construction, golf course and industrial dewatering. Utilities, manhole and vault draining, marine, Landscape irrigation, mobile plant watering. Seal coating machines to sealcoat driveways or small parking lots.

Kohler 5.5HP engine is 196cc, 1 gal. gas tank providing 2.5 Hrs run time.

Sturdy steel roll cage included.

Any pump parts will be needed and PumpBiz stocks parts to all the pumps we sell and support. These are the same pumps used by many rental stores, so they have proven themselves many times over.

More Information
Model Number	STHP-50K
Max Flow (GPM.)	158
Max Flow GPH	9480
TDH Maximum (Ft)	95
TDH Maximum (PSI)	40
Horse Power (HP)	5 1/2
Horsepower (IE .5, 1, 1.5, 20)	5.5000
Inlet Connection Type	MNPT
Inlet (In.)	2
Outlet Connection Type	MNPT
Outlet (In.)	2
Wetted Materials	Aluminum, Ductile Iron
Elastomers / O-ring	Buna-Nitrile
Motor	Gas Engine
Speed (RPM.)	3450
Self Priming	Yes
Suction Lift (FT.)	26
Max Operating Temperature (F)	120
Viscosity	Cream 16.50 cp 100.00 ssu
Mechanical Seal	Yes
Mechanical Seal Face	SiC
Mechanical Seal Type	Single
Other	18''x14''x15''. EPA and CARB Certified Engine. Shaft Seal is 0115159. Kohler Courage Engine with ELECTRIC START 6.5HP-196cc, standard keyed shaft 3/4in Dia x 2 7/16in L Horiz Shaft PASH2653021. Kohler is a value / Better deal than a Honda GX200 most sell at $689. Replacement engine for GX160 or 200. Kohler Courage Engine brings professional-grade features to the consumer. Overhead valve design provides power with better fuel efficiency and cleaner emissions. The cast iron cylinder bore and steel forged crankshaft add protection under load, extending engine life. Lubrication System: Splash, Fuel Tank Capacity 1gal, Auto Compression Release: Yes, Dimensions L x W x H (in.): 12.3 x 14.3 x 13.5, Fuel Pump: No, Crankshaft: Steel forged and hardened, Bearing Type: Ball, Cylinder Bore: 2.7, Shaft Rotation (From PTO Shaft Side): CCW, Shaft End Tapped (Diameter (in.)/Threads per inch): 5/16-24 UNF, Fuel Type: Gasoline, Shaft Output: CCW, Start Type: Recoil and ELECTRIC 12vdc, Max. RPM: 3,600, Shaft Diameter (in.): 3/4, Governor System: Mechanical, Mounting Base L x W (in.): 6.378 x 3.169, Choke Control: Yes, Muffler Included, Fuel Filter: Yes, Low Oil Shutdown: Yes, Ignition System: Electronic, Air Cleaner Type: Dual element cyclonic, Rated Power (HP): 6 1/2, Engine Displacement (cc): 196, Oil Capacity (qt.): 0.63, EPA Approval, Large Fuel Tank is Metal 1gal, Engine Type: Horizontal air-cooled, Compression Ratio: 8.5 : 1, Throttle Control: On engine.
Approvals	CARB
Low Oil Shutdown	Yes
Impeller Material	Cast Iron, semi-open
Duty	Continuous
Drain	Yes
Port Rotation	Yes
Fuel Tank Size	1gl
Country of Manufacture	United States
Weight (Lbs)	26.000000
Engine Brand	Kohler
Warranty (YRS.)	1
GPM Of Water At 20 Feet Of Head	150
GPM Of Water At 40 Feet Of Head	130
GPM Of Water At 60 Feet Of Head	100

Koshin pumps are the standard and known world wide in the contractor, rental, and portable pump markets as the brand to use. Most portable water pumps by Koshin feature Honda gas engines. Koshin manufactures a complete line of self priming centrifugal pumps for general transfer, high pressure and trash debris filled liquids. These pumps come in gas or diesel engine and single phase electric submersibles. Koshin is the most copied pump design coming out of China, but do not think they are the same. Use only the best, the original Koshin.

For over 70 years Koshin has continued to invest in new product testing and development. Koshin totally redesigned its production facilities in 2013 adding in house aluminum die casting, production automation, and state of the art process flow management. With a core philosophy of customer satisfaction, Koshin insures that each product off of its production line is of the finest quality. This is why we can proudly say that the performance specification found in this catalog are guaranteed minimum. This is often not the case with our competitors, who inflate actual performance values.

To further insure our valued customers that Koshin stands by our produces, we offer a 3 year limited warranty against manufactured defects. Our pumps are used and loved in 160 all over the world.

Koshin… the world’s toughest pump.
