115v Demand Pump 5.3GPM
-
Model Number:
5537-1E1-58C
-

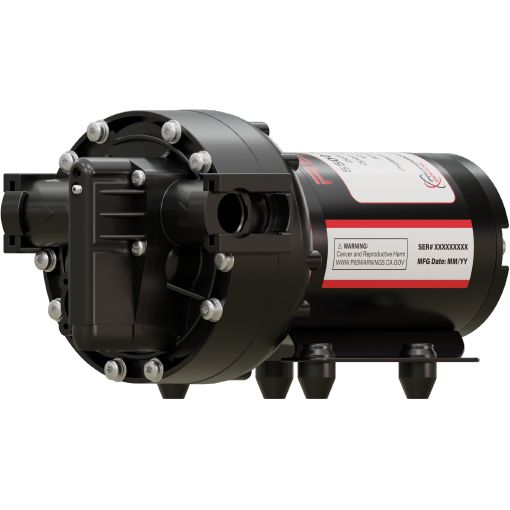

Product Name:115v Demand Pump 5.3GPM
-
Manufacturer:
-
Series (20 Models):
5.3GPM 60PSI 120v NPT
Model Number
5537-1E1-58C
$332.00
Remco 5537-1E1-58C
Demanding industrial pump environments require precise engineering and quality components—the demand pump was designed with both. Demand pumps operated as a positive displacement pump which has a pressure switch built in. When flow is open the pump runs, when the discharge is closed or restricted to much the psi switch senses the set point and turns off the pump automatically. For it’s size, it is one of the most powerful and productive diaphragm pumps you can buy. If your specifications call for low noise, smooth operation, continuous flow and high capacity, it will meet the challenge. 1/2"FNPT threads can easily be supplied with garden hose adapters. Multi-fixture RV park model water installations. Other uses may include 120V AC pressurized water systems in cabins. This pump may be used for general fresh water transfer, wash down. Includes cord and plug.
Typical Applications:
- Heavy Duty Spraying
- High Pressure Cleaning
- Agricultural Spraying
- Bulk Transfer
- Food Truck
- De-icing
- Roof Cleaning
Remco's 5500 series 5.3 GPM Sprayer pump is the Professional Grade choice for performance and efficiency. This sprayer pump utilizes a 60 PSI pressure setting and Remco's signature sealed 115VAC electric motor allowing the pump to operate in the harshest environments. The 5500 Series is Made in the U.S.A and engineered with Professional Grade components able to withstand long and continuous duty cycles of Agricultural spray applications. Utilizing heavy 14 AWG wire leads the Remco 5500 Series has low operating temperatures and is extremely efficient. This 5.3 GPM pump's materials of construction are compatible with most common agricultural spray chemical including herbicides, fertilizers, and insecticides. The Professional Grade 5500 Series Spray pump is engineered to withstand the most rigorous and punishing duty cycles, a top of the line performer for all pumping needs.
- 5.3 GPM, 60 PSI On Demand, 115VAC, 6ft power cord, 1/2" NPT threaded Ports
- Capable of being run dry
- Self priming up to 14' vertically
- 6ft Power Cord
- Highest flow rate and lowest operating temperature at spray pressures when compared to other pumps
- Chemically compatible with common Agricultural chemicals like herbicides, fertilizers, and insecticides
- Internal Thermal Protection shut off, Maximum Shell Temperature of 180 F
- Maximum Liquid Temperature of 140 F
- 100% Factory Tested
- Made In the USA
| Model Number | 5537-1E1-58C |
|---|---|
| Series | 5500 SERIES |
| Max Flow (GPM.) | 5 |
| Max Flow GPH | 300 |
| TDH Maximum (Ft) | 138 |
| TDH Maximum (PSI) | 60 |
| Inlet Connection Type | FNPT |
| Inlet (In.) | 0.5 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 0.5 |
| Wetted Materials | PolyPro-GF |
| Elastomers / O-ring | FKM |
| Diaphragm | Santoprene |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor | TENV |
| Self Priming | Yes |
| Suction Lift (FT.) | 11 |
| Max Operating Temperature (F) | 140 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Length (In.) | 9.000000 |
| Mechanical Seal | No |
| Cord Size | 14/2 |
| Cord Length (Ft.) | 6 |
| Duty | Intermittent |
| Drain | No |
| Port Rotation | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 10.000000 |
| Warranty (YRS.) | 1 |
>
