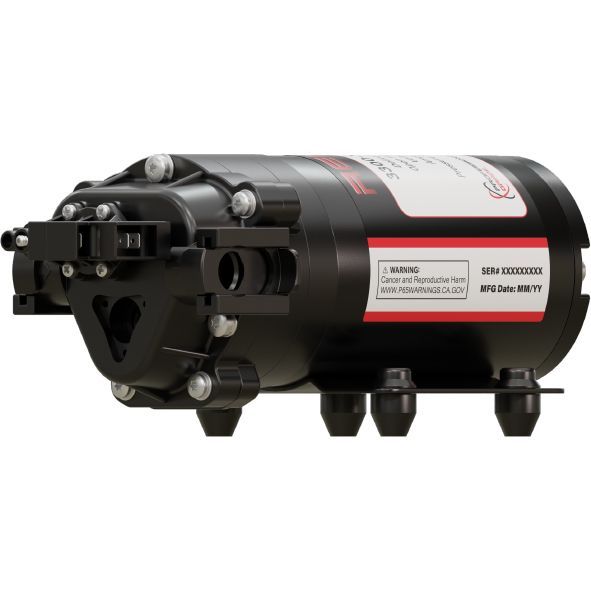

115v Demand Pump 1GPM
-
Manufacturer:
-
Product Name:115v Demand Pump 1GPM
-
Model Number:3321-1E1-52C
1GPM 60PSI 115AC
Model Number
3321-1E1-52C
$206.41
Remco 3321-1E1-52C
Diaphragm pump with automatic switch. Demand
Demanding industrial electric pump environments require precise engineering and quality components葉he demand pump was designed with both. Demand pumps operated as a positive displacement pump which has a pressure switch built in. When flow is open the pump runs, when the discharge is closed or restricted to much the psi switch senses the set point and turns off the pump automatically. For its size, it is one of the most powerful and productive diaphragm pumps you can buy, pumping up to 2.0 gallons per minute. If your specifications call for low noise, smooth operation, continuous operation and high capacity, it will meet the challenge. 3/8"FNPT threads can easily be supplied with garden hose adapters. Typical Applications: heavy Duty Spraying, high Pressure Cleaning, agricultural Spraying bulk Transfer, starter Fertilizer, de-icing, roof Cleaning *Santoprene- EPDM-based thermoplastic elastimer and is resistant to mild acids, some solvents and bases
<p>Replace shurflo 8000-033-236 on bottle filling machines.</p>
| Model Number | 3321-1E1-52C |
|---|---|
| Max Flow (GPM.) | 1.2 |
| Max Flow GPH | 72 |
| TDH Maximum (Ft) | 138 |
| TDH Maximum (PSI) | 60 |
| Inlet Connection Type | FNPT |
| Inlet (In.) | 0.375 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 0.375 |
| Wetted Materials | PolyPro-GF |
| Elastomers / O-ring | FKM |
| Diaphragm | Santoprene |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60-50 |
| Motor | TENV |
| Self Priming | Yes |
| Max Operating Temperature (F) | 140 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Mechanical Seal | No |
| Cord Size | 14/2 |
| Cord Length (Ft.) | 4 |
| Drain | No |
| Port Rotation | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 8.000000 |
| Warranty (YRS.) | 1 |
>
Remco Professional Grade pumps.
Quality starts with our vision to produce fluid handling equipment that excels in performance and reliability, and surpasses the end user’s expectations.
Industry professionals choose Remco first because of our commitment to pro-level quality, engineering and customer service.
The Remco PowerRV Series provides a solution for every RV fluid pumping challenge, from potable water to gray and black water.
Electric diaphragm demand pumps for fluid handling applications such as purification, light industrial, food and beverage, agricultural, and automotive.
Available in 12VDC, 24VDC, 115VAC
