115v Demand Pump 100PSI
-
Model Number:
5537-1i1-65C
-
Product Name:115v Demand Pump 100PSI
-
Manufacturer:
-
Series (20 Models):
2.2GPM 100PSI 120v NPT
Model Number
5537-1i1-65C
$323.00

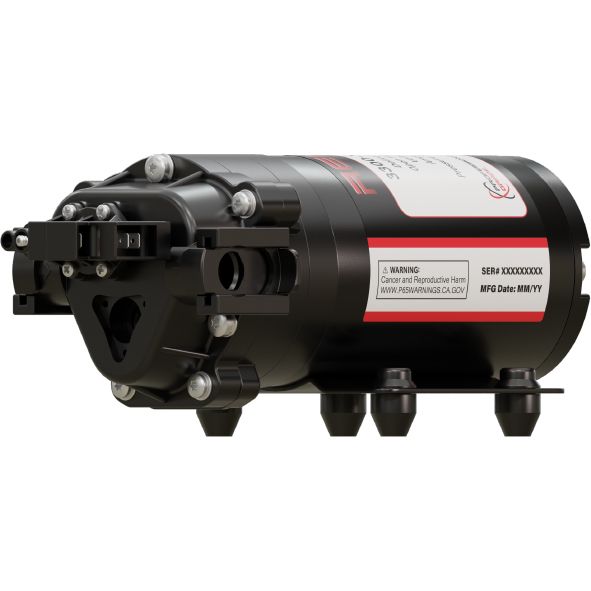

Remco 5537-1i1-65C
115V Demand Pump, 100 PSI
The Remco 5537-1i1-65C is a high-performance 115V diaphragm demand pump, engineered for industrial, agricultural, and commercial applications requiring precision, reliability, and efficiency. With a built-in pressure switch, this positive displacement pump automatically shuts off when the discharge is closed or restricted, ensuring consistent performance with minimal manual intervention.
Key Features & Benefits
- Powerful Performance – Delivers 5.3 GPM at 100 PSI, making it one of the most powerful diaphragm pumps in its class.
- Automatic Demand Control – Built-in pressure switch turns the pump on when flow is open and off when closed, preventing damage and reducing energy consumption.
- Self-Priming & Dry Run Capable – Self-primes up to 14 feet vertically and can run dry without damage.
- Durable & Reliable – Designed to withstand harsh industrial environments, with low operating temperaturesand an internally sealed 115V AC motor for extended life.
- Chemical Compatibility – Safe for use with common agricultural chemicals such as herbicides, fertilizers, and insecticides.
- Factory Tested & USA Made – Ensures high-quality construction and reliability for demanding applications.
Typical Applications
- Heavy-duty spraying
- High-pressure cleaning
- Agricultural spraying
- Bulk liquid transfer
- Food trucks
- De-icing systems
- Roof cleaning
- Multi-fixture RV water systems
- Pressurized water systems for cabins
Specifications
- Flow Rate: 5.3 GPM
- Pressure Rating: 100 PSI
- Power Supply: 115V AC with 6-ft power cord
- Connections: 1/2" FNPT (compatible with garden hose adapters)
- Maximum Liquid Temperature: 140°F
- Maximum Shell Temperature: 180°F
- Internal Thermal Protection Shut-Off
- 100% Factory Tested & Made in the USA
The Remco 5537-1i1-65C Demand Pump is a powerful, efficient, and durable solution for high-pressure pumping applications.
| Model Number | 5537-1i1-65C |
|---|---|
| Series | 5500 SERIES |
| Max Flow (GPM.) | 5.3 |
| Max Flow GPH | 318.6 |
| TDH Maximum (Ft) | 230 |
| TDH Maximum (PSI) | 100 |
| Inlet Connection Type | FNPT |
| Inlet (In.) | 0.5 |
| Outlet Connection Type | FNPT |
| Outlet (In.) | 0.5 |
| Wetted Materials | PolyPro-GF |
| Elastomers / O-ring | FKM |
| Diaphragm | Santoprene |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor | TENV |
| Self Priming | Yes |
| Suction Lift (FT.) | 11 |
| Max Operating Temperature (F) | 140 |
| Viscosity | SAE 10 oil 88.00 cp 500.00 ssu |
| Length (In.) | 9.0000 |
| Mechanical Seal | No |
| Cord Size | 14/2 |
| Cord Length (Ft.) | 6 |
| Duty | Intermittent |
| Drain | No |
| Port Rotation | No |
| Country of Manufacture | United States |
| Weight (Lbs) | 10.000000 |
| Warranty (YRS.) | 1 |
>
