1 inch Utility Gas Water Pump
-
Model Number:
1G4XAR
-
Product Name:1 inch Utility Gas Water Pump
-
Manufacturer:
-
Series :
Portable water pump with Briggs engine - Made in USA
Model Number
1G4XAR
23% Off
Special Price
$564.51
Regular Price
$733.13
AMT 1G4XAR

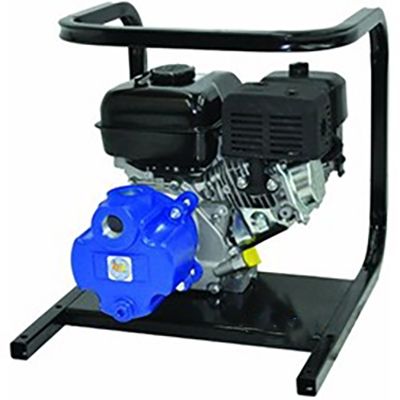

1 inch Utility Gas Water Pump
Portable water pump has Briggs Stratton 4HP 4-Cycle engine. Cast Aluminum Utility pump 3600GPH for use in construction, irrigation, fire fighting, wash down, general dewatering, & herbicides. Includes built in check valve for quick re-prime starting. 0.52g. gas tank will allow for up to 80 min. run time. Includes Heavy Duty Roll Frame assembly. 4 stroke gas engine, no mixing gas.
This little high pressure fire / spray pump features the Commercial Grade engine with OHV. Transistorized magneto ignition. See curve "B".
| Model Number | 1G4XAR |
|---|---|
| part number | 1G4XAR |
| Series | Gas Portable Pumps 58-140 gpm |
| Max Flow (GPM.) | 75 |
| Max Flow GPH | 4500 |
| TDH Maximum (Ft) | 90 |
| TDH Maximum (PSI) | 39 |
| Horse Power (HP) | 4 |
| Horsepower (IE .5, 1, 1.5, 20) | 4.0000 |
| Inlet (In.) | 1 |
| Outlet (In.) | 1 |
| Wetted Materials | Aluminum |
| Suction Lift (FT.) | 3 |
| Max Operating Temperature (F) | 120 |
| Max Particle Size (In) | .2 |
| Viscosity | Cream 16.50 cp 100.00 ssu |
| Length (In.) | 20.000000 |
| Other | amt pump |
| Impeller Material | Alum. |
| Duty | Continuous |
| Port Rotation | Yes |
| Weight (Lbs) | 50.000000 |
| UPC | 072684652460 |
| Warranty (YRS.) | 1 |
| GPM Of Water At 40 Feet Of Head | 55 |
Supporting Docs
Supporting Docs
AMT Pump Company is A Subsidiary of The Gorman-Rupp Company located in Mansfield, Ohio. AMT offers over 1000+ different standard model numbers of which 400+ are readily available and offered as QSP, Quick Ship Products. AMT manufactures and sells Industrial / Commercial pumps & accessories through authorized distributors.
Virtually every product AMT sells is engineered and designed by the company. Pump components are machined, assembled and tested at the Royersford, Pennsylvania facility.
AMT’s unique designs and patented products have made the company the industry leader for their high quality pumps.
