4 Self-Priming Stainless Steel pump
-
Model Number:
6210-98
-
Product Name:4 Self-Priming Stainless Steel pump
-
Manufacturer:
-
Series (5 Models):
10HP 230/460v
Model Number
6210-98
$10,625.00
AMT 6210-98
Self-Priming Stainless Steel pump 10HP.

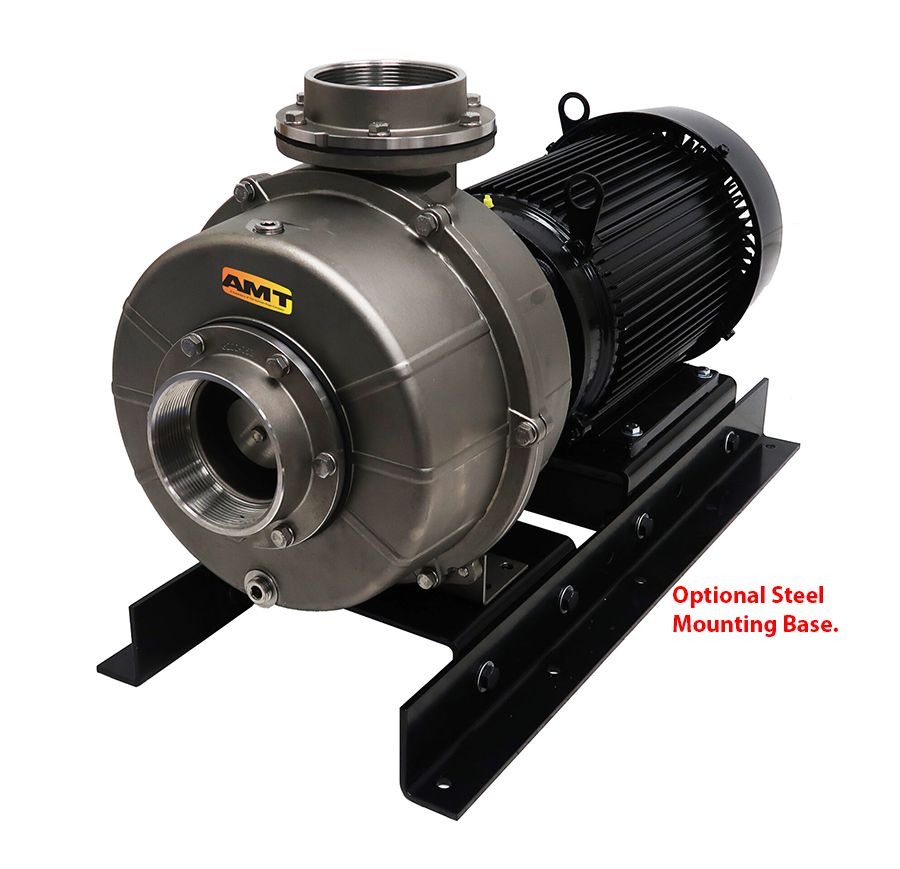

4 Self-Priming Stainless Steel pump. A robust Stainless Steel SS Centrifugal self priming pump designed for a broad range of high capacity applications, including dewatering, waste pits, liquid transfer, circulation, drainage and irrigation. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open stainless steel impeller, which can handle 1/2" diameter semi-solids. Built-in check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. Optional Silicon Carbide seal is available. Optional Mounting Base Available. A200-90 Hazardous Duty EXPlosion Proof Motors Available; CALL FOR QUOTATION & LEAD TIME!
| Model Number | 6210-98 |
|---|---|
| part number | 6210-999-98 |
| Series | 3-4” Stainless Steel Self Priming Pumps |
| Max Flow (GPM.) | 500 |
| Max Flow GPH | 30000 |
| Minimum Flow (GPM.) | 50 |
| TDH Maximum (Ft) | 110 |
| TDH Maximum (PSI) | 62 |
| Horse Power (HP) | 10 |
| HP Required | 10 |
| inlet size | 4" |
| Outlet (In.) | 4 |
| Wetted Materials | 316SS |
| Voltage (Range) | 208-230/460//190-220/380-415 |
| Motor | TEFC |
| Speed (RPM.) | 3450 |
| Viscosity | Water 1.00 cp 31.00 ssu |
| Stages | 1 |
| Shaft | 304SS |
| Length (In.) | 38 |
| Mechanical Seal | Yes |
| Coupling | N |
| Other | amt pump |
| Impeller Material | SS Self Cleaning Semi Open |
| Cord Length (Ft.) | 0 |
| Port Rotation | Yes |
| Weight (Lbs) | 213.000000 |
| Warranty (YRS.) | 1 |
>
AMT Pump Company is A Subsidiary of The Gorman-Rupp Company located in Mansfield, Ohio. AMT offers over 1000+ different standard model numbers of which 400+ are readily available and offered as QSP, Quick Ship Products. AMT manufactures and sells Industrial / Commercial pumps & accessories through authorized distributors.
Virtually every product AMT sells is engineered and designed by the company. Pump components are machined, assembled and tested at the Royersford, Pennsylvania facility.
AMT’s unique designs and patented products have made the company the industry leader for their high quality pumps.
