Self Priming Centrifugal Pump

Model Number:

285P-95
Product Name:

Self Priming Centrifugal Pump
Manufacturer:

AMT Pumps
Series (17 Models):

Small Self Prime Water Pumps to 82 gpm

3/4HP 230/460v/3 TEFC

Model Number

285P-95

Specifications

25% Off Special Price $600.00 Regular Price $800.00

Email to a Friend Price Match

Skip to the end of the images gallery

Skip to the beginning of the images gallery

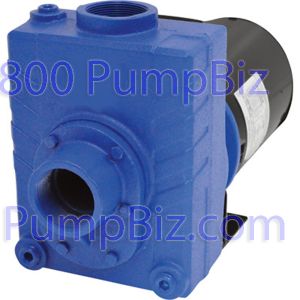

AMT 285P-95

3/4HP 3 phase Self-priming debris handling pump

AMT / IPT cast iron pump for circulating, liquid transfer and dewatering applications. Self-cleaning, clog resistant impeller handles dirty water with some solids. Built in flapper / check valve. Handle & steel case.

See Curve "B"

More Information
Model Number	285P-95
part number	285P-999-95
Series	Small Self Prime Water Pumps to 82 gpm
Max Flow (GPM.)	67
Max Flow GPH	4020
TDH Maximum (Ft)	59
TDH Maximum (PSI)	26
Horse Power (HP)	3/4
Horsepower (IE .5, 1, 1.5, 20)	0.7500
Inlet Connection Type	FNPT
inlet size	1 ¼"
Inlet (In.)	1.25
Outlet Connection Type	FNPT
Outlet (In.)	1.25
Wetted Materials	Cast Iron
Elastomers / O-ring	Buna-Nitrile
Voltage (V)	230/460
Voltage (Range)	220-240/460-480
Phase (Ø)	Three (3)
Motor Frequency	50/60
Motor Amps (A)	3/2
Motor	TEFC
Speed (RPM.)	3450
Motor Frame	56J thrd
Self Priming	Yes
Suction Lift (FT.)	15
Max Operating Temperature (F)	180
Viscosity	Milk 3.20 cp 40.00 ssu
Shaft	416SS
Length (In.)	17.100000
Mechanical Seal Face	Carbon-ceramic
Mechanical Seal Type	Single
Impeller Number (In.)	B
Other	Replacement seals 1641-165-91 SiC, 1640-161-90 Buna Car/Cer (not installed).
Impeller Material	Cast Iron, semi-open
Cord Length (Ft.)	0
Duty	Continuous
Drain	Yes
Port Rotation	No
Country of Manufacture	United States
Weight (Lbs)	47.000000
Quick Ship	Yes
UPC	072684650859
Warranty (YRS.)	1
GPM Of Water At 30 Feet Of Head	50
GPM Of Water At 40 Feet Of Head	38
GPM Of Water At 50 Feet Of Head	20
