Series:

Concrete Vibrator PortaVibe

Product Name:

PortaVibe Pump Attachment

Model Number:

F03663

Quick Overview

PortaPump pump assembly Attachment

Details

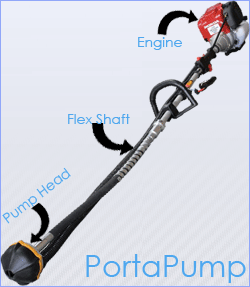

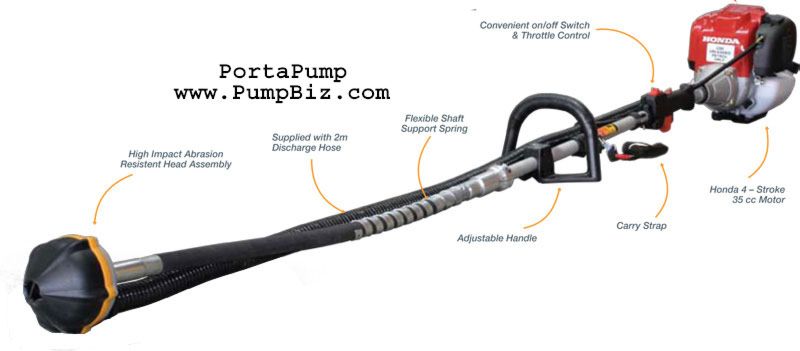

PortaPump pump head, shaft assembly and hose for interchangeable use on the PortaVibe to dewater construction site trenches, footings. PortaPump™ provides the solution to pumping waste water with an easy to use portable hand held unit. There is no need for electricity supply or separate pump units. PP32 pump end only, no engine or upper shaft.

Easy To Use With a convenient on/off switch and throttle control built into the handle. PortaPump ™ is great for dewatering flooded yard / culvert / playing field / parking lot, fish pond fountain, kids swimming pool, trenches, footings, valve boxes, sand traps, receiving docks, boat bilge emergency, boat covers, grave diggers and much more. No more worries of electricity and its hazards, nor trying to prime a pump. Simply start the engine (supplied separately) and using the throttle start pumping as much as you want. Extra hose assembly part # F03637.

This pump attachment only fits the PortaPump or PortaVibe engine, not other commercial power heads. For units to fit generic power heads see Tornado Force Submersible Water Pump (**encoding or data invalid**)

Additional Information

Model Number F03663
Series Concrete Vibrator PortaVibe
Country of Manufacture
Weight (Lbs) 15
Time to Ship (DAYS) 1 day
Warranty (YRS.) 1
Max Flow (GPM.) 33
TDH Maximum (Ft) 16
TDH Maximum (PSI) 7
HP Required 1.3
Wetted Materials ABS, Aluminum
Elastomers Buna-Nitrile
Motor Gas Engine
Speed (RPM.) variable
Self Priming Yes
Max Operating Temperature (F) 100
Max Volume Of Suspended Solids (0/0) 5
Max Particle Size (In) 0.25
Viscosity Milk 3.20 cp 40.00 ssu
Mechanical Seal LIP
Mechanical Seal Type Double
Applications Contractor, Dewatering, Marine, Portable
Other Pump attachment protected by USA Patent 6,494,674. Other world patents and patents pending.
Impeller Material Aluminum, semi-open
Drain Yes
Port Rotation Yes
