Rhombus

Since 1975, SJE (S.J. Electro Systems, Inc.) has built a reputation as a world leader, providing trouble-free liquid level controls for water, wastewater, sump, and sewage systems. With the creation of the Rhombus® Technology division in 1991, SJE-Rhombus now represents the most reliable integration of liquid level controls and motor control panels in the industry. Sewage grinder pumps.

Rhombus

  • 123 Single Phase Duplex Sewage Grinder Control Panel

    The SJE Rhombus Model 123 control panel is designed to control two 120, 208, or 240 VAC single phase pumps in water and sewage applications. The alternating action equalizes the pump wear. In addition to the alternating pump control, these systems provide override control should either pump fail. If an alarm condition occurs, an alarm switch activates the audio/visual alarm system. Common applications include pump chambers and lift stations. UL/cUL Listed. 16" X 14" X 6" enclosure 120V control circuit 120/208/240V pump circuits IEC motor contactors Pump run lights HOA switches Terminal blocks Fuse Control on/off switch Three (on, off, lag/alarm) 20 foot Sensor Float® control switches Start / Run capacitor kit to be supplied by customer and mounted by SJE Rhombus, 12B suffix. Otherwise Rhombus can supply start kit but needs to know pump details. Grinder Pumps

  • 114 Single Phase Simplex Intrinsically Safe Circuits Pump Control

    The SJE Rhombus Model 114 control panel is designed for applications requiring instrinsically safe float circuits or other circuit extensions. Ths panel controls one 120, 208, or 240 VAC single phase pump. Two control switches activate a magnetic motor contactor to turn the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audio/visual alarm system. Common applications include pump chambers, lift stations, or other installations classified as hazardous locations requiring intrinsically safe circuits. UL Listed relating to hazardous locations with intrinsically safe circuits. 120V control circuit 120/208/240V pump circuit Intrinsically safe relays IEC motor contactor Pump run light HOA switch Terminal block Control and alarm fuses Control on/off switch Three (on, off, alarm) 20 foot Sensor Float® control switches Three Year Warranty

  • 124 Single Phase Duplex Intrinsically Safe Circuits Pump Control

    The SJE Rhombus Model 124 control panel is designed for applications requiring intrinsically safe float circuits or other circuit extensions. This panel alternately controls two single phase pumps. The alternating action equalizes pump wear. In addition to the alternating pump control, the system provides override control should either pump fail. If an alarm condition occurs, an alarm switch activates the audio/visual alarm system. Common applications include pump chambers, lift stations, or other installations classified as hazardous locations requiring instrinsically safe circuits. UL Listed relating to hazardous locations with intrinsically safe circuits. Intrinsically safe module IEC motor contactors Pump run light HOA switches Terminal block Control/alarm fuse Control on/off switch Three (on, off, lag/alarm) 20 foot Sensor Float® control switches Three Year Warranty Panels include three 20' Sensor Float normally open control switches

  • 314 Three Phase Simplex Intrinsically Safe Circuits Pump Control

    The SJE Rhombus Model 314 control panel is designed for applications requiring intrinsically safe float circuits or other circuit extensions. This panel controls one 208/240/480 VAC three phase pump. Two control switches activate a magnetic motor contactor to turn the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audio/visual alarm system. Common applications include pump chambers, lift stations, or other installations classified as hazardous locations requiring intrinsically safe circuits. UL Listed relating to hazardous locations with intrinsically safe circuits. Multi-tap control transformer 208/240/480 VAC primary provides 120 VAC control voltage Motor protective switch for short circuit and overload protection Intrinsically safe relay IEC motor contactor Pump run light HOA switch Terminal block Control/alarm fuse Control on/off switch Three (on, off, alarm) 20 foot Sensor Float® control switches Three Year Limited Warranty

  • 324 Three Phase Duplex Intrinsically Safe Circuits Pump Control

    The SJE Rhombus Model 324 control panel is designed for applications requiring instrinsically safe float circuits or other circuit extensions. This panel alternately controls two 208/204/408 VAC three phase pumps. The alternating action equalizes pump wear. In addition to the alternating pump control, this system provides override control should either pump fail. If an alarm condition occurs, an alarm switch activates the audio/visual alarm system. Common applications include pump chambers, lift stations, or other installations classified has hazardous locations requiring intrinsically safe circuits. UL Listed relating to hazardous locations with intrinsically safe circuits. Multi-tap control transformer 208/240/480 VAC primary provides 120 VAC control voltage Intrinsically safe module Motor protective switches for short circuit and overload protection IEC motor contactor Pump run light HOA switch Terminal block Fuses Control on/off switch Three (on, off, lag/alarm) 20 foot Sensor Float® control switches Three Year Limited Warranty

  • Level Control Accessories

    Cord seals, Float Brackets, Junction boxes and more.

  • 112 Simplex Pump Systems Control Panel Single Phase

    The SJE Rhombus Model 112 control panel provides a reliable means of controlling one 120, 208, or 240 VAC single phase pump in pump chambers, sump pump basins, irrigations systems, and lift stations. Two control switches activate a magnetic motor contactor to run the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audio/visual alarm systems. UL/cUL Listed. 8" X 8" X 4" enclosure (dependent on options selected) (NEMA 1 steel for indoor use, NEMA 4X ultraviolet stabilized thermoplastic with removable flanges for outdoor use) 120 V control circuit 120 V or 120/208/240 V pump circuit Magnetic motor contactor Internal pump run light on circuit board HOA switch on circuit board Terminal block Control/alarm fuses on circuit board Three (on, off, alarm) 20 foot Sensor Float® control switches Alarm on/Control on power indicators on circuit board

  • TD Single Phase Simplex Timed Dosing Pump Control

    The SJE Rhombus Model TD control panel provides a reliable means of controlling one singe phase pump in on-site septic installations. A low level cutout float overrides the timer to prevent the pump from running dry. An alarm float activates the audio/visual alarm system indicating a high liquid level. Common applications include sand filter systems, pressure distribution systems, mound systems, or any application requiring timed dose control. UL/cUL Listed. 10" X 8" X 4" enclosure (NEMA 4X) Alarm beacon Alarm horn Horn silence switch Programmable timer Pump circuit breaker Magnetic motor contactor Control and alarm fuses Terminal blocks HOA switch One (low-level cutout) 20 foot SJE PumpMaster® pump switch; one (alarm) 20 foot Sensor Float® Mini control switch Three-year limited warranty

  • DTD Single Phase Duplex Timed Dosing Pump Control

    Model SJE Rhombus DTD time dosing panel provides a reliable means of controlling two single phase 120, 208, or 240 VAC pumps in on-site septic installations. A programmable timer, in conjunction with an alternating circuit board, alternately activates the magnetic motor contactors to turn the pumps on and off and equalize pump wear. A low level cutout float overrides the timer to prevent the pump from running dry. An alarm float activates the audio/visual system indicating a high liquid level. Common applications include sand filters, pressure distribution systems, mound systems, or any application requiring timed dose control. UL/cUL Listed. 14" x 12" x 6" enclosure (NEMA 4X) Red alarm beacon Alarm horn Horn silence switch Programmable Timer Pump circuit breakers Magnetic motor contactors Control and alarm fuses Terminal blocks HOA switches One (low level cut out) 20 Foot SJE Pumpmaster® pump switch; one (alarm) 20 foot Sensor Float® Mini control switch 3-year limited warranty

  • PS Single Phase Duplex Programmable Timed Dosing Control Panel

    The SJE Rhombus Model PS control panel provides a reliable means of controlling both pump chamber and sand filter pumps in on-site septic installations. UL/cUL Listed. 14" x 12" x 6" indoor/outdoor enclosure (NEMA 4X) 120 VAC control/alarm circuit 120 VAC or 120/208/240 VAC pump circuit Red alarm beacon Alarm horn HOA switches Pump chamber and sand filter magnetic motor contactors Programmable repeat cycle timer Pump chamber and sand filter circuit breakers Control/alarm fuse Float switch and control/pump power terminal blocks Two 20 foot SJE PumpMaster® pump switches (low level cutoff for pump chamber; pump on/off for sand filter), one 20 foot SJE PumpMaster® SPDT (low level cutoff for pump chamber; high level alarm for sand filter ), and one Sensor Float® control switch (high level alarm for pump chamber).

  • Intrinsically Safe Circuits

    Model 114 Single Phase Simplex Pump Control with Intrinsically Safe Circuits The Model 114 Build-A-Panelâ„¢ control panel provides greater flexibility by ordering through options, allowing you to customize a standard panel to your specific needs. The Model 114 control panel is designed to control one 120/208/240V single phase pump in applications requiring intrinsically safe float circuits or other circuit extensions. Two control switches activate a magnetic motor contactor to turn the pump on and off.  If an alarm condition occurs, an alarm switch activates the audio/visual alarm system. Common applications include pump chambers, lift stations or other installations classified as hazardous locations requiring intrinsically safe circuits.

  • RP Single Phase Simplex Plug-in Pump Switch Control

    The SJE Rhombus Model RP control panels provide a reliable means of controlling one 120, 208, or 240 VAC single phase pump in water and wastewater applications. A pump float switch turns the pump on and off. If an alarm condition occurs, an additional alarm float activates the audio/visual alarm. Common applications include pump chambers, sump pump basins, irrigation systems, and lift stations. UL/cUL Listed. 8" x 6" x 4" enclosure Alarm beacon Horn silence (on/off) switch Alarm fuse Terminal blocks One (alarm) 20 foot Sensor Float® control switch; one (on/off) 20 foot pump switch Three-year limited warranty

  • 115 Single Phase Simplex Pump Switch Control

    The SJE Rhombus Model 115 control panel provides a reilable means of controlling one 120, 208, or 240 VAC single phase pump in water and wastewater applications. A pump float switch turns the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audio/visual alarm system. Common applications include pump chambers, sump pump basins, irrigation systems, and lift stations. UL/cUL Listed. 8" X 6" X 4" enclosure (NEMA 1 steel for indoor use, NEMA 4X ultraviolet stabilized thermoplastic with removable flanges for outdoor use) 120/208/240 V pump circuit Internal pump run light HOA switch Terminal block One (alarm) 20 Sensor Float® control switch; one (on/off) pump switch

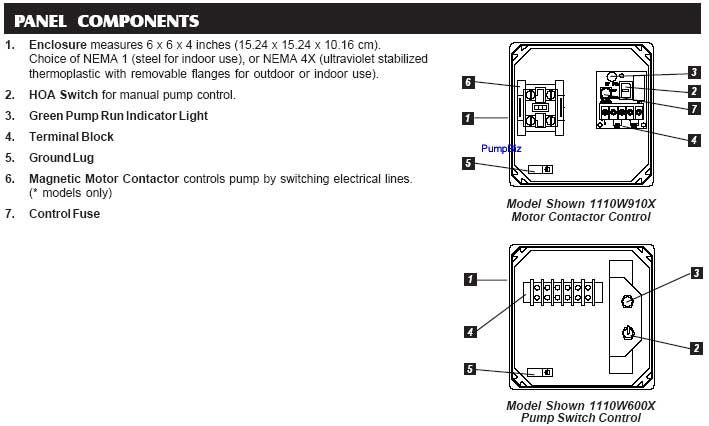

  • 111 Basic Single Phase Simplex Controller

    The SJE Rhombus Model 111 control controller provides a reliable basic means of controlling one 120, 208, or 240 VAC single phase pump in water and wastewater installations. The motor contactor version utilizes two control switches that activate a magnetic motor contractor to run the pump on and off. A pump float switch can also be utilitzed as the pump starting device of Model 111 control panels. Common applications include pump chambers, sump pump basins, irrigation systems, and lift stations. 6" X 6" X 4" enclosure (NEMA 1 steel for indoor use I or NEMA 4X W ultraviolet stabilized thermoplastic with removable flanges for outdoor use) 120 V control circuit 120/208/240 V pump circuit Internal pump run light HOA switch Terminal block Control fuse Two (on, off) 20 foot Sensor Float® control switches (contactor model); one (on/off) 20 foot pump switch (pump switch model) UL/cUL Listed. Three Year Limited Warranty

  • 312 Simplex Pump Systems Control Panel Three Phase

    The SJE Rhombus Model 312 control panel provides industrial and commercial customers with a reliable means of controlling one three phase pump in water and wastewater applications. Two control switches activate a IEC motor contactor to turn the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audio/visual alarm system. Common applications include pump chambers, irrigation systems, and lift stations. UL/cUL Listed. 12" X 10" X 6" enclosure (dependent on options selected) Multi-tap control transformer 208/240/480 VAC primary provides 120 VAC control voltage Motor protective switch for short circuit and overload protection Magnetic motor contactor Pump run light HOA switch Float switch terminal block Input power terminal block Control/alarm fuse Control on/off switch Three (on, off, alarm) 20 foot Sensor Float® control switches Three Year Limited Warranty

  • SGS Single Phase Simplex Sewage Grinder Control Panel

    The SJE Rhombus Model SGS (Sewage Grinder System) control panel provides a reliable means of controlling one single phase pump. This panel, designed for water and wastewater applications, control pumps of 2 HP or less requiring external starting components. UL/cUL Listed. 120/208/240 V pump circuit 120 VAC control circuit 12" X 10" 6" enclosure (NEMA 1 steel for indoor use or NEMA 4X ultraviolet stabilized thermoplastic) Alarm beacon IEC contactor Pump circuit breaker Includes starting components for certain pump models Backplate wiring diagram Terminal blocks Control and alarm fuses Three (on, off, alarm) 20 foot Sensor Float® control switches

  • 322 Duplex Pump Control Panel Three Phase

    Three phase, duplex alternating pump control panel with override. The SJE Rhombus Model 322 control panel is designed to alternately control two three phase pumps in industrial and commercial water and wastewater sewage systems. The alternating action equalizes pump wear. In addition to the alternating pump control, this system provides override control should either pump fail. If an alarm condition occurs, the alarm switch activates the audio/visual alarm system. Common applications include lift stations, pump chambers, and irrigation systems. 208/240/480 V pump circuit 14" X 12" X 6" enclosure (dependent on options selected) Multi-tap control transformer 208/240/480 VAC primary provides 120 VAC control voltage Motor protective switches for short circuit and overload protection Magnetic motor contactors NEMA 4X FRP enclosure Pump run light HOA switches Terminal block Control/alarm fuse Control on/off switch Three (on, off, lag/alarm) 20 foot Sensor Float® control switches UL/cUL Listed 3-year limited warranty

  • 113 Single Phase Simplex Sewage Grinder Control Panel

    The SJE Rhombus Model 113 control panel provides a reliable means of controlling on 120, 208, or 240 VAC single phase pump in water and sewage applications. Two control switches activate an IEC motor contactor to turn the pump on and off. If an alarm condition occurs, an additional alarm switch activates the audio/visual alarm system. Common applications include pump chambers and lift stations. UL/cUL Listed. 14" X 12" X 6" enclosure 120V control circuit 120/208/240V pump circuit IEC motor contactor Pump Run light HOA switch Terminal block Control and alarm fuses Control on/off switch Three (on, off, alarm) 20 foot Sensor Float® control switches

  • 122 Duplex Pump Systems Control Panel Single Phase

    SJE Rhombus 122 Duplex alternating pump systems control panel for single phase units with override. Designed to alternately control two 120, 208, or 240 VAC single phase pumps in water and sewage installations. The alternating action equalizes the pump wear. In addition to the alternating pump control, these systems provide override control should either pump fail. If an alarm condition occurs, an alarm switch activates the audio/visual alarm system. Common applications include pump chambers, lift stations, sump pump basins, and irrigation systems. Standard package includes three 20' Sensor Float® control switches 3-year limited warranty UL/cUL Listed Another common approach to the problem is a Duplex pump arrangement with or without a alternator. Thought is a lot of the time 1 pump may be enough flow, so why run / cycle a bigger pump more often. Any and all mechanical items (pumps/motors) fail or have a problem (prime, debris) and if that happens 1 pump is not going to do its job. Duplex avoids these issues. Then if you add a duplex alternator control starter you get the best of all worlds. 1 pump (alternating) will start and try to handle the flow. If it can not keep up OR has a problem the second pump kicks in. Exercises each pump in a alternating fashion for long life. Fulfills the need to have a branch motor control switch / circuit (NEC). Last but not least the cost may be less due the smaller single phase motor.
