EF2200iS inverter / generator 2.2KW
-
Model Number:
EF2200iS
-
Product Name:EF2200iS inverter / generator 2.2KW
-
Manufacturer:
-
Series (21 Models):
Yamaha EF2200iS

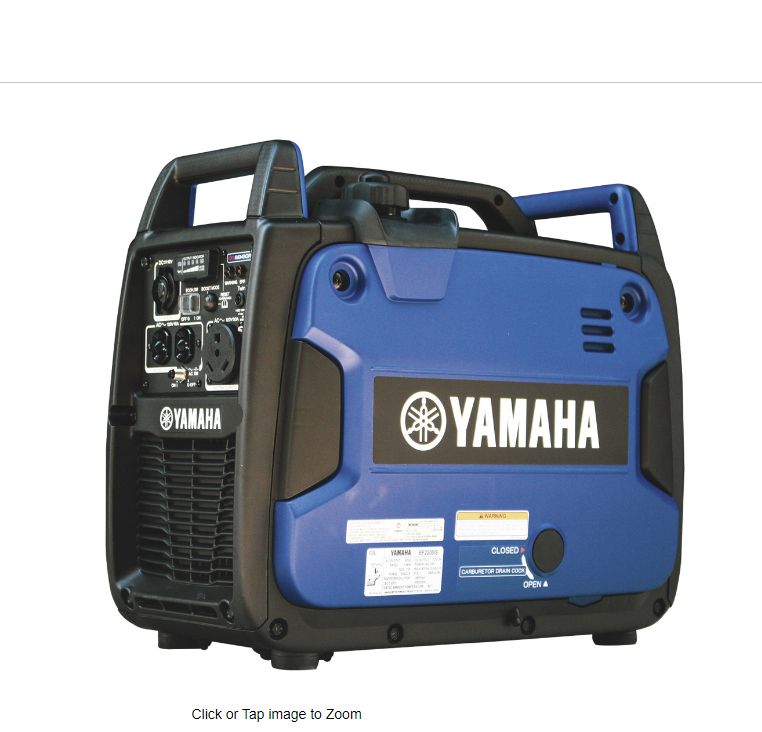

EF2200iS inverter generator 2.2KW. 129861
New design (replaces EF2000) of a old standby. Powerful, portable and retro-cool, it delivers maximum output with minimum effort. Weighing at a mere 44 compact pounds, it features an extra large handle for easy transport to you campsite, work-site, fishing spot – almost anywhere. Fitted with Yamaha's most technologically sophisticated muffler; its whisper quiet. Meeting the strictest environmental standards, it’s simply the greenest way ever to power up.
This Yamaha Inverter Generator with CO sensor lets you take plenty of clean power, protection and reliability on any adventure. Low total harmonic distortion means you can safely operate sensitive electronics. And with a quiet 57dB noise output, this model won't disturb you or your neighbors. It also boasts a 30 Amp RV plug and two 120 Volt outlets to meet your power needs. If you want more power, the Twin Tech parallel function allows you to connect two Yamaha EF2200iSZ inverter generators together for 30 Amps of rated power.
- Super-quiet muffler with USFS-approved Spark Arrestor - Only 51.5 dBA at 1/4 load and eliminates errant sparks.
- Legal for sale in all 50 states - Meets CARB emission regulations.
- 13.3 / 16.7 amps @ 120V - 30 Amp RV outlet for high-power needs
- Illuminated multifunction LED display for easy status checks
- Compact - 2.2 cu.ft. easy to store and transport.
- TwinTech™ capability - Hook up two EF2200iS’s for 3600 watts (30A) of maximum power.
- Extended Engine Emission Life Rating - Longest engine emission life rating issued by EPA.
- OHV engine with cast iron cylinder liner - Efficient, reliable, powerful providing long life and excellent heat dissipation.
- Smart Throttle™ varies engine speed based on load - Improves fuel economy and reduces noise.
- Inverter system with Pulse Width Modulation (PWM) control - Can run products with built-in microcomputers or microcomputer-controlled electric tools.
- Gasoline petcock - Helps prevent carburetor contamination during storage.
- OilWatch warning system - Prevents engine damage and provides added peace of mind.
- Fuel gauge - Ability to gauge fuel level without opening cap.
- Auto Warm Up – Increases engine speed during cold starts to handle high power demand appliances right away.
- Auto-decompression system - Reduces compression for easier starting.
- Comfortable grip handles - Easy portability and storage.
- Electrical overload breaker - Prevents generator damage in case of overload.
- Controls all on one panel - Easy access to controls.
- DC outlet - 3A 12V outlet for charging batteries (cables included).
- Rubber vibration isolation feet - Absorbing feet for increased smooth operation and noise reduction.
- Easily detachable side panels - For easier serviceability.
- Noise Block™ sound reduction system - Very quiet.
| Model Number | EF2200iS |
|---|---|
| part number | EF2200iSZ |
| Series | Yamaha generators Portable |
| Watts | 2200.000000 |
| Voltage (V) | 115 |
| Voltage (Range) | 110-120 |
| Phase (Ø) | Single (1) |
| Motor Frequency | 60 |
| Motor Amps (A) | 13.3/18.3 |
| Motor | Gas Engine |
| Other | Max. / Rated AC Current: 16.7 / 13.3 amps @ 120v. PARALLEL CABLE SAME AS HONDA EU2000i. Specifications Type Brushless Inverter Maximum AC Output 2000 watts Rated AC Output 1600 watts Rated / Maximum AC Current 16.7 / 13.3 amps @ 120V Engine OHV, Forced Air-Cooled, Four-Stroke, Single Cylinder Displacement 79cc Overall Length 19.3 in Overall Width 11.0 in Overall Height 17.9 in Dry Weight 44.1 lb Fuel Tank Capacity 1.1 gallons Continuous Operation at 1/4 Rated Load 10.5 hrs Noise Level 51.5 - 61 dBA Warranty 3 Years Limited Warranty |
| Approvals | CARB, EPA, USFS Muffler |
| Low Oil Shutdown | Yes |
| Duty | Continuous |
| Drain | Yes |
| Run Time (HR.) | 10.5 Hrs 25% Load |
| Fuel Tank Size | 1.1 Gal |
| Decibel Rating | 57 dbA |
| Country of Manufacture | Japan |
| Weight (Lbs) | 55.000000 |
| Smart Throttle | Yes |
| Engine Brand | Yamaha |
| Warranty (YRS.) | 3 |
